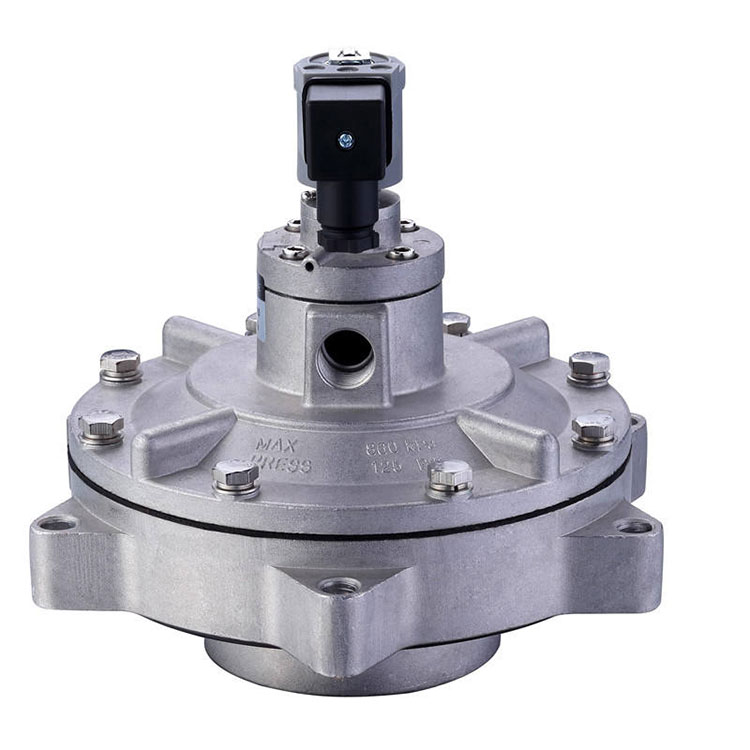

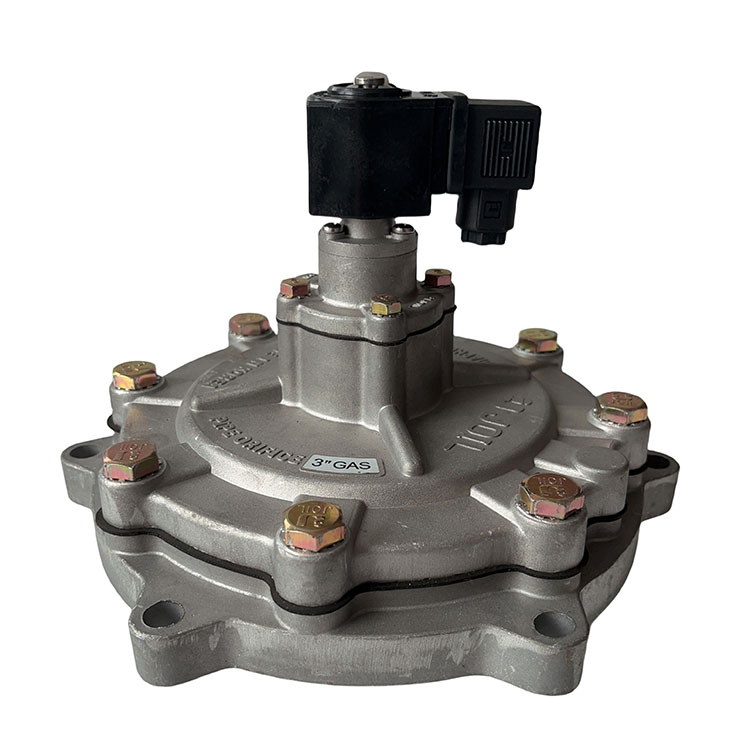

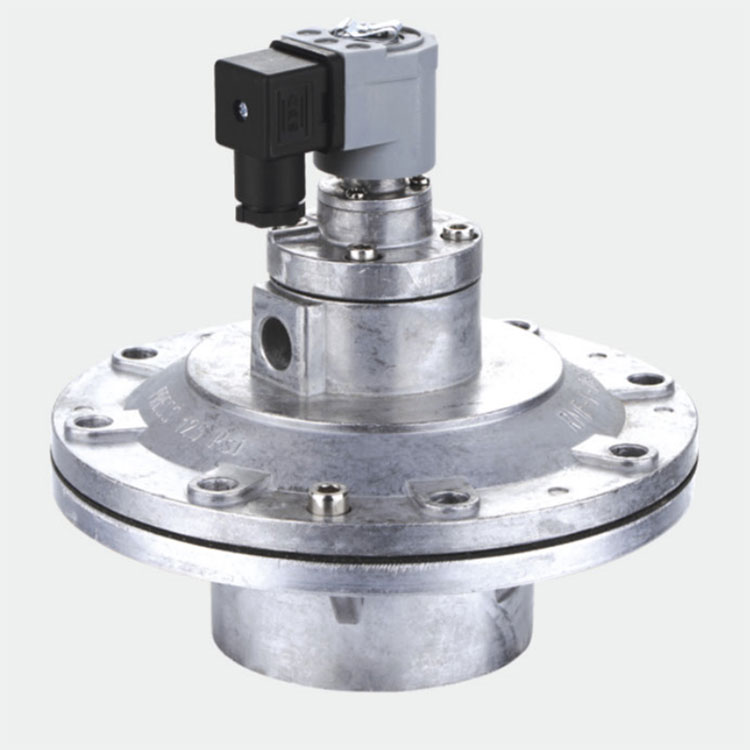

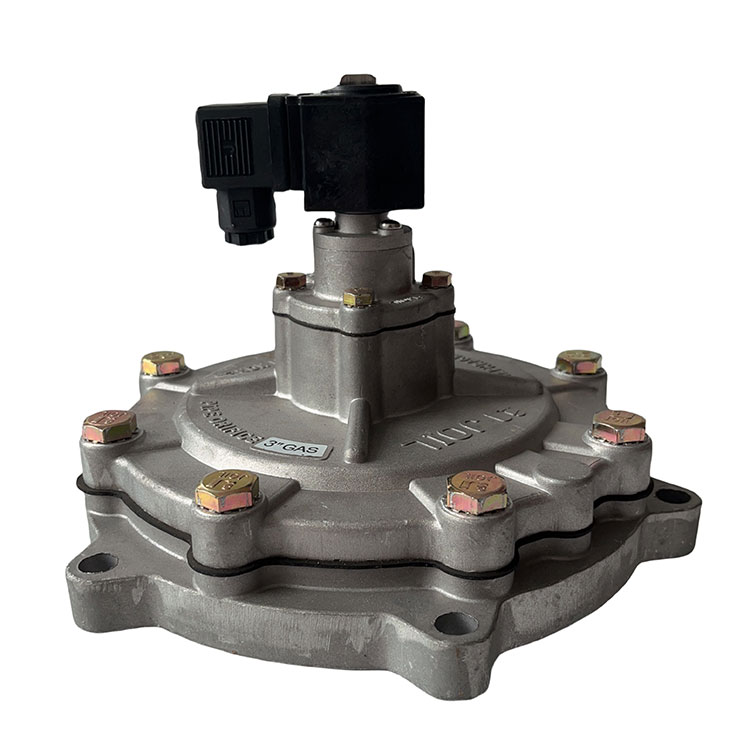

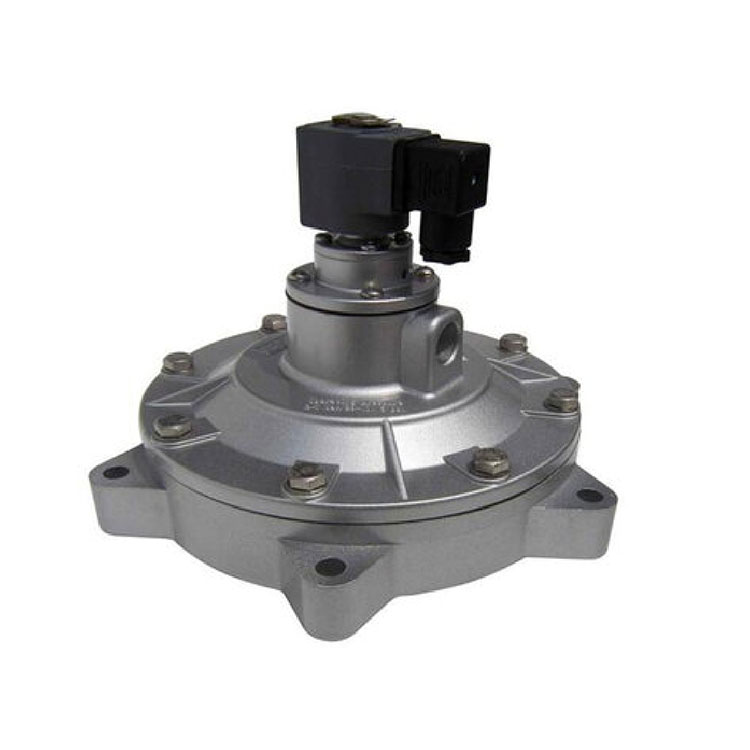

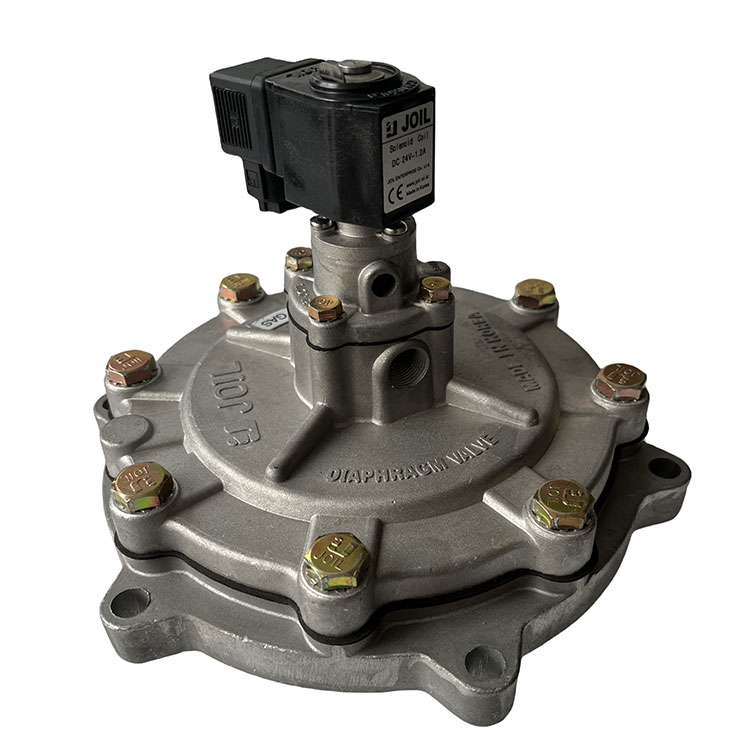

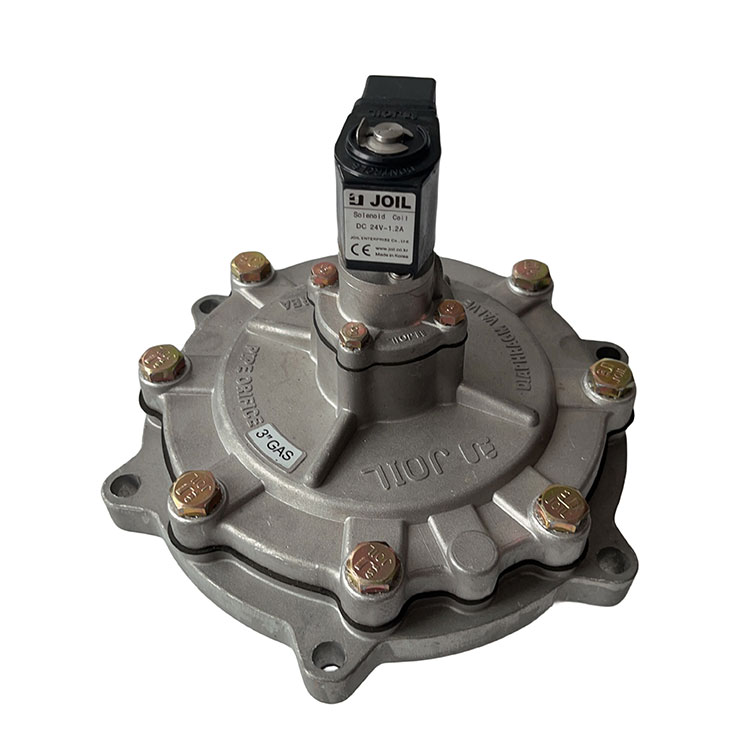

2 Way 1.5" Submersible Impulse Valve

Qingdao Star Machine Technology Co.,Ltd. is a large-scale Dust removal 2 Way 1.5" submersible impulse valve manufacturer and supplier in China.We have over 20 years of production and sales experience in the field of dust removal and purification equipment. We have always adhered to the principle that "reputation and quality are the space for development". Our 2-way 1.5 "submersible pulse valve covers most markets in Europe, Asia, and the United States. We look forward to becoming your long-term partner in China.

Send Inquiry

Product Description

Qingdao Star Machine Technology Co.,Ltd. 2 Way 1.5" submersible impulse valve has a high-quality and low price,It's installed with the valve seat embedded in the air bag, has low resistance, good flow ability, high injection volume, increased load carrying capacity, expanded the range of use of air source pressure, and is more suitable for use in situations with wide air source pressure.

The diaphragm divides the electromagnetic 2 Way 1.5" submersible impulse valve into two chambers: front and rear. When compressed air is connected, it enters the rear chamber through the throttle hole. At this time, the pressure in the rear chamber tightly presses the diaphragm component against the output port of the valve, and the electromagnetic pulse valve is in a "closed" state.

The electrical signal of the pulse injection control instrument causes the armature of the electromagnetic 2 Way 1.5" submersible impulse valve to move back, and the vent hole of the rear air chamber opens. The rear air chamber rapidly loses pressure, and the diaphragm component moves back. Compressed air is sprayed through the valve output port, and the electromagnetic pulse valve is in the "open" state. The electrical signal of the pulse blowing control instrument disappears, the electromagnetic pulse valve armature is reset, the rear air chamber vent is closed, and the pressure in the rear air chamber increases, causing the diaphragm component to tightly adhere to the output port of the valve. The electromagnetic pulse valve is again in a "closed" state.

Product Parameter (Specification)

2 Way 1.5

Product Feature

1. 2 Way 1.5" submersible impulse valve applicable environment: temperature -10~+55 ℃; The relative humidity shall not exceed 85%, and the electromagnetic coil can withstand a voltage of 50Hz and 250V to the shell for 1 minute without any breakdown phenomenon.

2. Working medium: clean air, dew point -20 ℃.

3. Injection air source pressure: 0.3~0.6MPa. When the working air source pressure is 0.1MPa, the pulse valve can be closed, and the product can withstand an air source pressure of 0.8MPa.

4. The working pressure of the product is 0.1MPa~0.7MPa, and the medium is air that has undergone oil and water removal treatment.

5. Injection gas volume: When the injection gas source pressure is 0.6MPa, the injection time is 0.1s, and the outlet is vented.

6. Working voltage and current of electromagnetic pilot valve: DC24V, 0.8A; AC220V, 0.14A; AC110V, 0.3A.

7. The inlet of the pulse valve is connected to the air bag, and the outlet is connected to the blowing pipe. When connecting, the threads should be filled with PTFE raw tape to ensure sealing. When connecting, it is also important to note that the length of the thread at the inlet end should not be too large to avoid affecting the injection volume.

8. When the working voltage of the electromagnetic valve is 85% of the rated voltage under the nominal air source pressure state of the product, the opening response time of the electromagnetic pulse valve is less than 0.03 seconds.

9. Under normal usage conditions, the cumulative usage of the 2 Way 1.5 "submissive impulse valve should be greater than 800000 times.

10. The surface of the valve is free from obvious coating peeling, scratches, burrs, and other damages.
