Air Cleaning Solenoid Valve
Qingdao Star Machine air cleaning solenoid valve has the advantages of simple structure, low cost, high efficiency, convenient maintenance, and strong voltage adaptability. The air cleaning valves not only can be controlled by pilot solenoid valves, but also can be controlled by pulse air even by mechanical valves.
Send Inquiry
Product Description

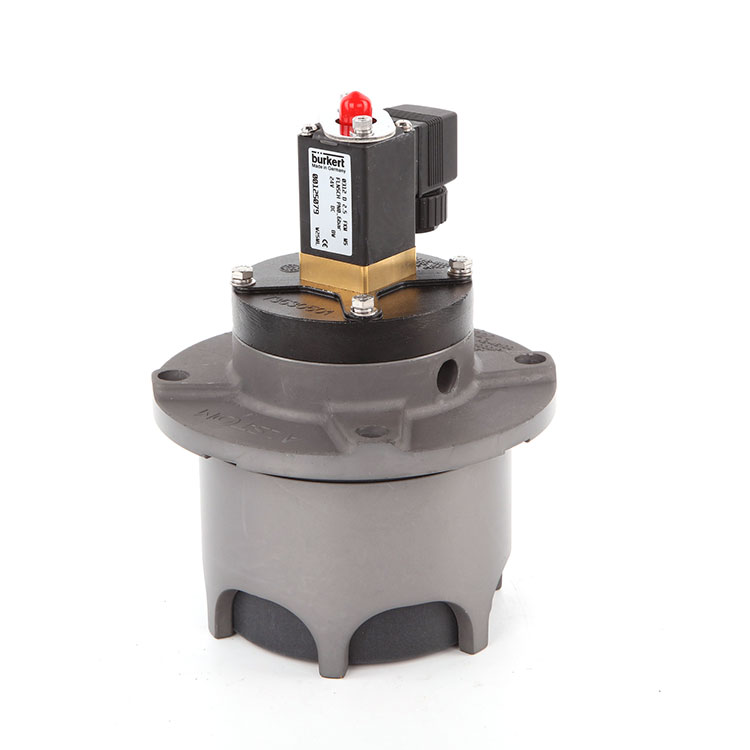

OPTIPOW105 V1617803-0800(without solenoid valve, revolving 90°)
Air Cleaning Solenoid Valve Principle
The volume A of SMCC durable Air Cleaning Solenoid Valve is via the slot between the OPTIPOW105 V1617803-0800 air cleaning solenoid valve house and the plunger connected to the pressure tank i.e.there is same pressure in the volume A as in the pressure tank.
Due to the larger pressured surface of the plunger of the OPTIPOW105 V1617803-0800 air cleaning solenoid valve in volume A the plunger is pressed towards the pulse pipe and sealing between the pressure tank and the pulse pipe.
The volume B is via the OPTIPOW105 V1617803-0800 air cleaning solenoid valve connected to the pilot air.The area is larger on pilot air side so the pilot membrane is pressed down towards the top of the valve house and seals off the volume A from the ambient.
Air Cleaning Solenoid Valve Global Customer Base
| Working pressure | 0.2-0.6MPa | Diaphragm life | Over one million cycles |
| relative humidity | ＜85% | working medium | Clean air |
| voltage, current | DC24V，0.8A；AC220V，0.14A；AC110V，0.3A | ||
Qingdao Star Machine OPTIPOW105 V1617803-0800 air cleaning solenoid valve products are sold to over 50 countries and regions including the United States, Canada, France, Germany, Italy, the Netherlands, the United Kingdom, Norway, the United Arab Emirates, India, Vietnam, Malaysia, etc. High-quality air cleaning solenoid valve products, reasonable prices, and excellent services, Qingdao Star Machine sincerely looks forward to working with you.
Product Parameter(Specification)
| Model NO. | V1617803-0800 | Valve Structure | Pilot Membrane Structure |
| Power Supply | DC Solenoid Valve | Usage | Drain, Dust Cleaning |
| Standard | DIN | Application | Industrial Usage |
| Used For | Dust Filter | Trademark | OPTIPOW |
| Specification | 3" | Design static pressure | 15 bar (1500 kPa) |
| Design temperature | 100 °C | Operating pressure | < 6 bar |
| Operating pressure variation | 3 bar unlimited nos | Operation temperature | 50 °C |

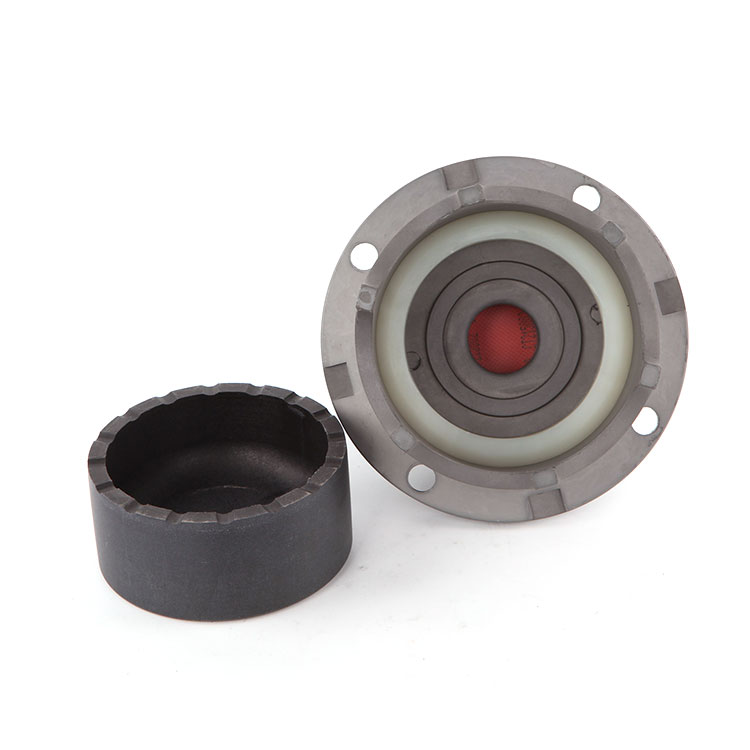

OPTPOW105 V1617803-0800 Valve & Components and Parts
| Product name | Article number | Pos. no. |
| OPTIPOW 105(24VDC) | V1617803-0100 | ① |
| OPTIPOW 105 (110V 60Hz, 100V 50/60Hz) | V1617803-0200 | ① |
| OPTIPOW 105 (110V 50Hz) | V1617803-0300 | ① |
| OPTIPOW 105 (120V 60Hz) | V1617803-0400 | ① |
| OPTIPOW 105 (220V 50Hz) | V1617803-0500 | ① |
| OPTIPOW 105 (UR-CERTIFIED 120V 60Hz ) | V1617803-0600 | ① |
| OPTIPOW 105 (without solenoid, revolving 90° C) | V1617803-0800 | 一 |
| Coupling Set | V3592382-0000 | 一 |
| Membrane | V4549902-0100 | ② |
| O-Ring (Fluor rubber 64.5 x 3.1) | 8003-5573 | ③ |
| O-Ring (Nitril 70SH 64.5 x 3.1) | 2136-1422 | ③ |
| O-Ring (114.5 x 3.1) | 2136-1435 | ④ |
| Pilot Cover | V3630501-0100 | ⑤ |
| Plate | V3630524-0100 | ⑥ |
| Plunger | V3630527-0100 | ⑦ |
| Round Washer (SS3576-10-200HV FE/ZN45) | 4903-2173 | 一 |
| Rubber Disc | V3630530-0100 | ⑧ |
| Rubber Disc | V3640661-0100 | ⑧ |
| Solenoid Valve(24 V DC) | V3611471-0100 | ⑨ |
| Solenoid Valve (100 V, 60 Hz) | V3611471-0201 | ⑨ |
| Solenoid Valve (110 V, 50 Hz) | V3611471-0300 | ⑨ |
| Solenoid Valve (110 V, 60 Hz) | V3611471-0200 | ⑨ |
| Solenoid Valve (120 V, 60 Hz) | V3611471-0400 | ⑨ |
| Solenoid Valve (120V, 60 Hz-UL CERTIFIED) | V3640645-0200 | ⑨ |
| Solenoid Valve (230V, 50 Hz) | V3611471-0500 | ⑨ |
Product Advantages
Qingdao Star Machine has 20 years of experience in the production and service of air cleaning solenoid valve industrial dust collectors. We not only provide customer air cleaning solenoid valve products, but also we are industry leader in industrial air dust collectors. The customized transportation can greatly save transportation time and cost, the independent proprietary foam box packaging makes our products safer, and 7 * 24 expert online service makes our users worry free.
Qingdao Star Machine has an independent design team, we accept customized services for H-series Pneumatic Pulse Jet Valve, and we sincerely welcome users from all over the world to cooperate with us.
Product Qualification
The OPTPOW105 V1617803-0800 air cleaning solenoid valve
is certified with SGS, BV to meet different countries' standard.
The sophisticated air cleaning solenoid pulse jet valve are second-to-none and made for the industry thermal power plant, glass factory, cement mill, flour mill,ect. OPTPOW105 air cleaning solenoid valve is the best tool for industy air dust collector can get for the task. The full product line-up covers all kinds of Qingdao Star Machine air cleaning solenoid valves solutions with superior quality across the entire range. These Qingdao Star Machine air cleaning solenoid valve made for work and built to last.
Packing
Each of Qingdao Star Machine air cleaning solenoid valve is packed in carefully designed professional foam boxes to prevent our pulse valves from bumping, scratching and deformation during transportation.
Carton Packing Size:
185mm*185mm*237mm for 1pcs OPTIPOW105 V1617803-0800 valve;
365mm*185mm*237mm for 2pcs OPTIPOW105 V1617803-0800 valve;
365mm*365mm*237mm for 4pcs OPTIPOW105 V1617803-0800 valve;
534mm*360mm*237mm for 6pcs OPTIPOW105 V1617803-0800 valve.
Shipping
Transportation methods for Qingdao Star Machine OPTPOW105 V1617803-0800 air cleaning solenoid valve can be freely and flexibly selected according to customer requirements. Our logistics transportation and distribution partners include FEDEX, DHL, UPS, TNT, sea express, sea LCL, and container sea freight specialist service.
Warranty and Service
Every Qingdao Star Machine OPTPOW105 V1617803-0800 air cleaning solenoid valve and its spare parts like this OPTPOW105 valve is manufactured at our own factories and subject to strict quality controls. Qingdao Star Machine OPTPOW105 V1617803-0800 air cleaning solenoid valve meet the highest quality standards and are built to last. We offer 2-years or 1,000,000 pulse times warranty extension for each Qingdao Star Machine OPTPOW105 V1617803-0800 air cleaning solenoid valve.
7*24hous Expert On Line, whether accessories or the entire equipment of Qingdao Star Machine OPTPOW105 V1617803-0800 air cleaning solenoid valve failure due to quality issues, it will be replaced free of charge during the warranty period.
