H-series Pneumatic Pulse Jet Valve
The Optipow105 H-series Pneumatic Pulse Jet Valve manufactured by Qingdao Star Machine Technology Co.,ltd. is the core component of a bag filter. This pulse jet valve has the advantages of compact structure, high dust removal efficiency, low cost, long service life, universal spare parts, and convenient use and maintenance.
Send Inquiry
Product Description

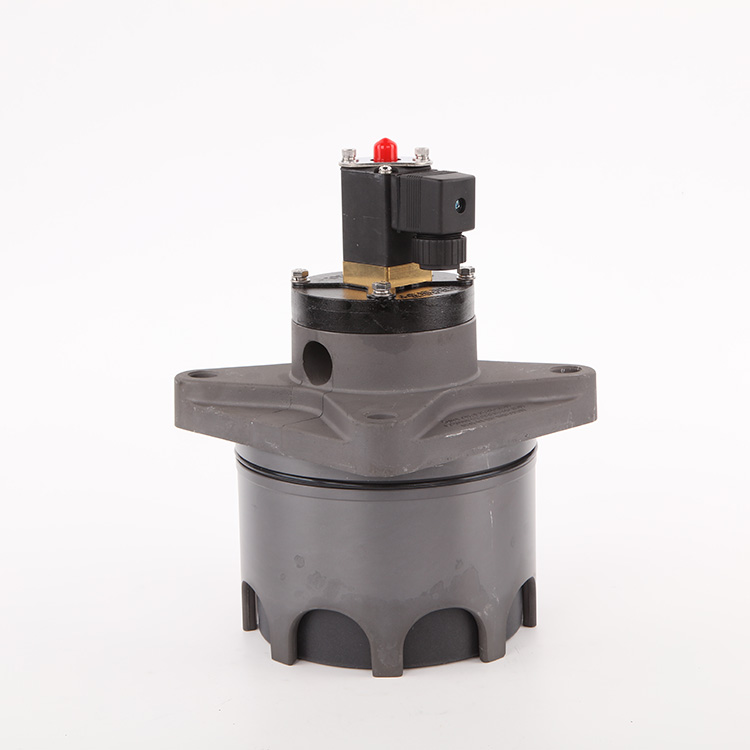

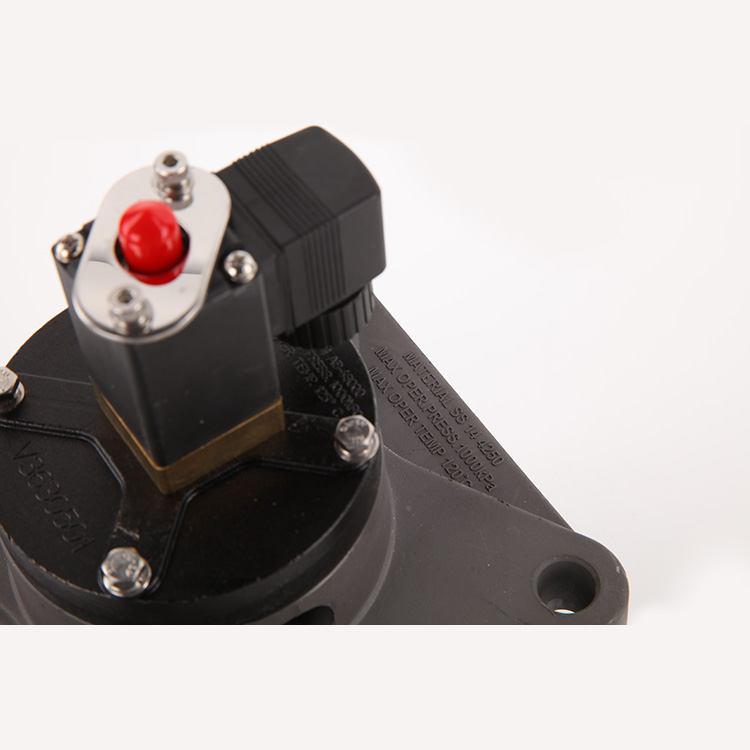

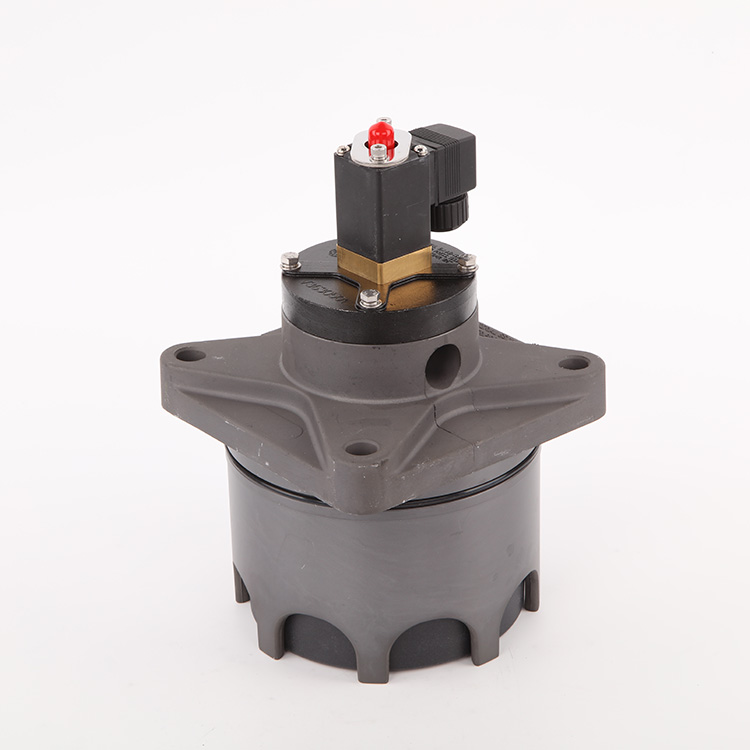

H-series Pneumatic Pulse Jet Valve
Qingdao Star Machine OPTPOW105 V1617803-0600 H-series Pneumatic Pulse Jet Valve is widely used in industrial equipment such as thermal power plants, glass factories, flour mills, cement factories, and mining,etc.
Product Parameter(Specification)
| Model NO. | V1617803-0500 | Valve Structure | Pilot Membrane Structure |
| Power Supply | DC Solenoid Valve | Usage | Drain, Dust Cleaning |
| Standard | DIN | Application | Industrial Usage |
| Used For | Dust Filter | Trademark | OPTIPOW |
| Specification | 3" | Design static pressure | 15 bar (1500 kPa) |
| Design temperature | 100 °C | Operating pressure | < 6 bar |
| Operating pressure variation | 3 bar unlimited nos | Operation temperature | 50 °C |

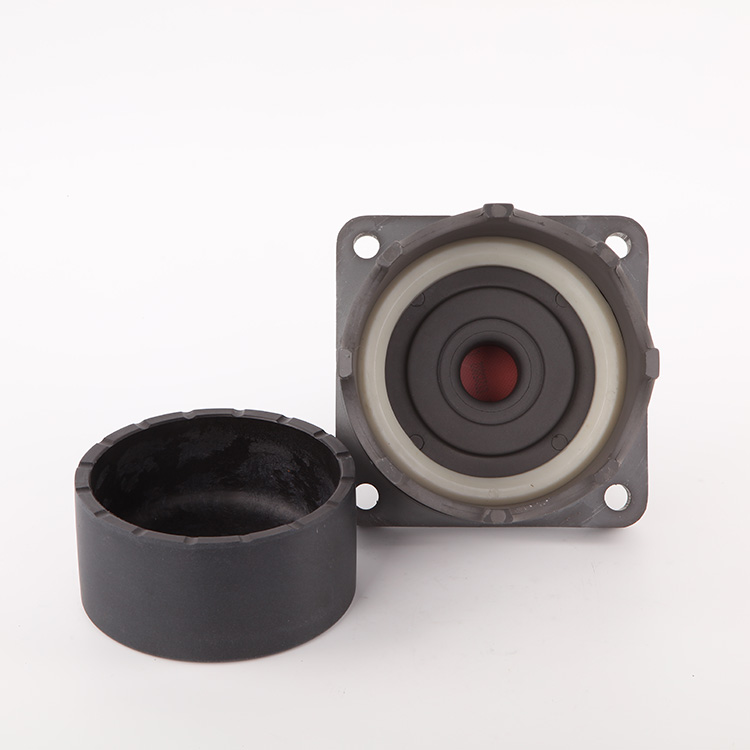

OPTPOW105 V1617803-0500 Valve & Components and Parts
| Product name | Article number | Pos. no. |
| OPTIPOW 105(24VDC) | V1617803-0100 | ① |
| OPTIPOW 105 (110V 60Hz, 100V 50/60Hz) | V1617803-0200 | ① |
| OPTIPOW 105 (110V 50Hz) | V1617803-0300 | ① |
| OPTIPOW 105 (120V 60Hz) | V1617803-0400 | ① |
| OPTIPOW 105 (220V 50Hz) | V1617803-0500 | ① |
| OPTIPOW 105 (UR-CERTIFIED 120V 60Hz ) | V1617803-0600 | ① |
| OPTIPOW 105 (without solenoid, revolving 90° C) | V1617803-0800 | 一 |
| Coupling Set | V3592382-0000 | 一 |
| Membrane | V4549902-0100 | ② |
| O-Ring (Fluor rubber 64.5 x 3.1) | 8003-5573 | ③ |
| O-Ring (Nitril 70SH 64.5 x 3.1) | 2136-1422 | ③ |
| O-Ring (114.5 x 3.1) | 2136-1435 | ④ |
| Pilot Cover | V3630501-0100 | ⑤ |
| Plate | V3630524-0100 | ⑥ |
| Plunger | V3630527-0100 | ⑦ |
| Round Washer (SS3576-10-200HV FE/ZN45) | 4903-2173 | 一 |
| Rubber Disc | V3630530-0100 | ⑧ |
| Rubber Disc | V3640661-0100 | ⑧ |
| Solenoid Valve(24 V DC) | V3611471-0100 | ⑨ |
| Solenoid Valve (100 V, 60 Hz) | V3611471-0201 | ⑨ |
| Solenoid Valve (110 V, 50 Hz) | V3611471-0300 | ⑨ |
| Solenoid Valve (110 V, 60 Hz) | V3611471-0200 | ⑨ |
| Solenoid Valve (120 V, 60 Hz) | V3611471-0400 | ⑨ |
| Solenoid Valve (120V, 60 Hz-UL CERTIFIED) | V3640645-0200 | ⑨ |
| Solenoid Valve (230V, 50 Hz) | V3611471-0500 | ⑨ |
Product Advantages
Qingdao Star machine Technology Co.,ltd. has 20 years of experience in the production and service of industrial dust collectors. We not only provide customer H-series Pneumatic Pulse Jet Valve products, but also we are industry leader in industrial air dust collectors. The customized transportation can greatly save transportation time and cost, the independent proprietary foam box packaging makes our products safer, and 7 * 24 expert online service makes our users worry free.
Qingdao Star Machine Technology Co., Ltd. has an independent design team, we accept customized services for H-series Pneumatic Pulse Jet Valve And we sincerely welcome users from all over the world to cooperate with us.
Product Qualification
The OPTPOW105 V1617803-0500 H-series Pneumatic Pulse Jet Valve is certified with SGS, BV to meet different countries' standard.
The sophisticated Pulse Jet Valve are second-to-none and made for the industry thermal power plant, glass factory, cement mill, flour mill,ect. OPTPOW105 H-series Pneumatic Pulse Jet Valve is the best tool for industy air dust collector can get for the task. The full product line-up covers all kinds of Qingdao Star Machine pulse jet valves solutions with superior quality across the entire range. These Qingdao Star Machine pulse jet valve made for work and built to last.
Packing
Each of Qingdao Star Machine H-series Pneumatic Pulse Jet Valve is packed in carefully designed professional foam boxes to prevent our pulse valves from bumping, scratching and deformation during transportation.
Carton Packing Size:
185mm*185mm*237mm for 1pcs OPTIPOW105 V1617803-0500 valve;
365mm*185mm*237mm for 2pcs OPTIPOW105 V1617803-0500 valve;
365mm*365mm*237mm for 4pcs OPTIPOW105 V1617803-0500 valve;
534mm*360mm*237mm for 6pcs OPTIPOW105 V1617803-0500 valve.
Shipping
Transportation methods for Qingdao Star Machine H-series Pneumatic Pulse Jet Valve can be freely and flexibly selected according to customer requirements. Our logistics transportation and distribution partners include FEDEX, DHL, UPS, TNT, sea express, sea LCL, and container sea freight specialist service.
Warranty and Service
Every Qingdao Star Machine H-series Pneumatic Pulse Jet Valve and its spare parts like this OPTPOW105 valve is manufactured at our own factories and subject to strict quality controls. Qingdao Star Machine H-series Pneumatic Pulse Jet Valve meet the highest quality standards and are built to last. We offer 2-years or 1,000,000 pulse times warranty extension for each Qingdao Star Machine H-series Pneumatic Pulse Jet Valve.
7*24hous Expert On Line, whether accessories or the entire equipment of Qingdao Star Machine H-series Pneumatic Pulse Jet Valve failure due to quality issues, it will be replaced free of charge during the warranty period.
