Pneumatic Valve for Baghouse Air Dust Collector
Qingdao Star Machine is a professional manufacturer of Pneumatic Valve for baghouse air dust collector with rich producing and exporting experience.
Baghouse dust collector is a dry type dust filtering device and they are commonly used in industrial production processes to remove dust and other pollutants from the air. They work by passing the air through a series of filters that trap the dust and other pollutants with the help and action of pneumatic valve for baghouse air dust collector.It is suitable for capturing fine, dry, non-fibrous dust. When the dusty gas enters the bag filter, the dust with large particles and large specific gravity will settle down and fall into the dust hopper due to gravity, and the gas containing fine dust will be blocked when it passes through the filter material, so that the gas will be purified.
Send Inquiry
Product Description
A SMCC High quality pneumatic valve for baghouse air dust collector is an important component of a baghouse air dust collector that controls the flow of air through the filter. It opens and closes based on the pressure difference between the clean and dirty sides of the filter. When the pressure difference exceeds a certain threshold, the pneumatic valve opens, allowing air to flow through the filter. When the pressure difference decreases below a certain threshold, the pneumatic valve closes, preventing air from flowing through the filter.
Optipow Pulse valve 135 is one type of pneumatic valve for baghouse air dust collector and has great market in the worldwide.
Basic feature:
| KEY FEATURE | DESCRIPTION |
| Name | Optipow Pulse Jet Valve |
| MODEL | V1614718-0301 |
| SIZE | 4 INCH |
| Nominal diameter | DN100 |
| Condition | 100% New |
| Brand | SMCC |
| Quality | Good |
| Features | Durable, High performance |
| Advantages | Easy to Install |
| Durability | Long life, one million times cycles |
| Usage | For Industrial bag filter |
| Working medium | Clean dry compressed air |
| Injection time(Pulse width) | 60-100MS |
| Pulse interval time | ≥60S |
| Filter area | 120㎡ |
| For Filter bag | 27 piece |
| Working Pressure | 0.2-0.6MPa |
| Protection grade | IP65 |
| Insulation grade | H |
| KV/CV value | 518.85/605.5 |
| Warranty | 24 months |

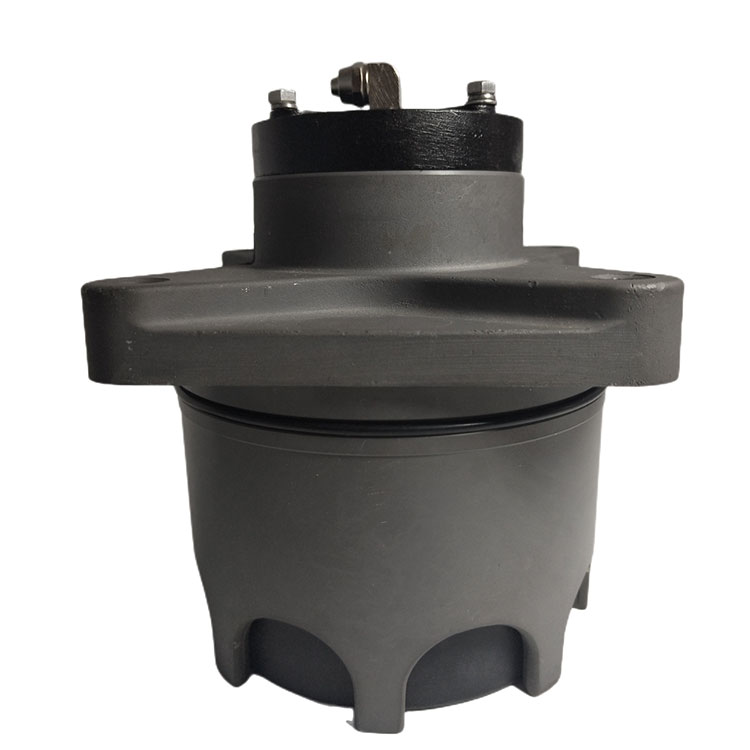

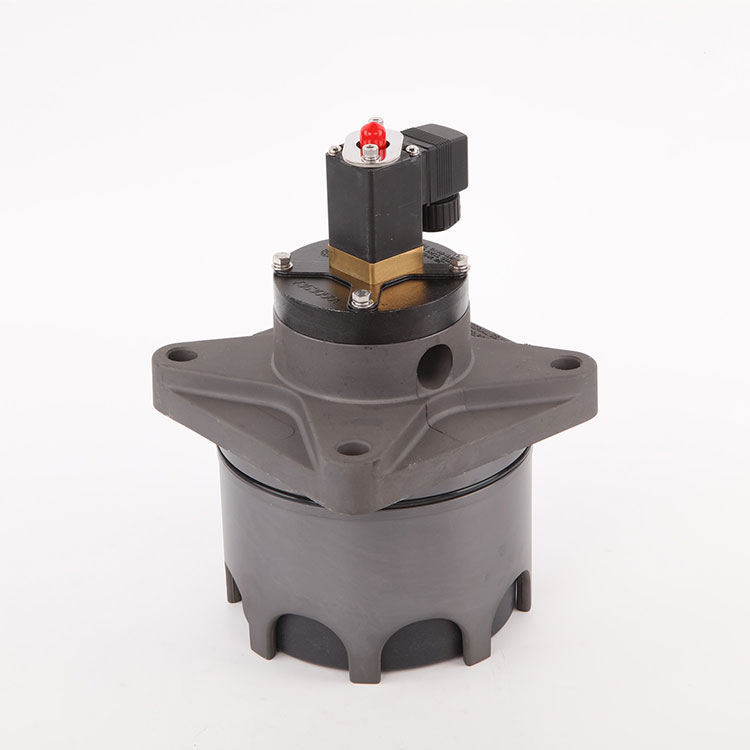

Pneumatic Valve for Baghouse Air Dust Collector products images:
The material of main parts of Pneumatic Valve for Baghouse Air Dust Collector:
| Product Name | Article Number | Pos. No. |
| OPTIPOW 135(24V) | V1614718-0100 | ① |
| OPTIPOW 135 (100V,50 Hz) | V1614718-0301 | ① |
| OPTIPOW 135 (120V, 60Hz) | V1614718-0400 | ① |
| OPTIPOW 135 (120V 60Hz UL-CERTIFIED) | V1614718-0700 | ① |
| OPTIPOW 135 (without solenoid, revolving 90° ) | V1614718-0800 | 一 |
| Membrane | V4549902-0100 | ② |
| O-Ring (Fluor rubber 64.5 x 3.1) | 8003-5573 | ③ |
| O-Ring (Nitril 70SH 64.5 x 3.1) | 2136-1422 | ③ |
| O-Ring (143 x 3.1) | 2136-1441 | ④ |
| Pilot cover | V3630501-0100 | ⑤ |
| Plate | V3630524-0100 | ⑥ |
| Plunger | V3629022-0100 | ⑦ |
| Round Washer (SS3576-5-200HV FE/ZN25) | 4903-2146 | 一 |
| Rubber Disc | V3640660-0100 | ⑧ |
| Solenoid Valve(24 V DC) | V3611471-0100 | ⑨ |
| Solenoid Valve (100 V, 60 Hz) | V3611471-0201 | ⑨ |
| Solenoid Valve (110 V, 50 Hz) | V3611471-0300 | ⑨ |
| Solenoid Valve (110 V, 60 Hz) | V3611471-0200 | ⑨ |
| Solenoid Valve (120 V, 60 Hz) | V3611471-0400 | ⑨ |
| Solenoid Valve (120V, 60 Hz-UL CERTIFIED) | V3640645-0200 | ⑨ |
| Solenoid Valve (230V, 50 Hz) | V3611471-0500 | ⑨ |
| Solenoid Valve (110 V, 60 Hz) | V3611471-0200 | ⑨ |
| Solenoid Valve (120 V, 60 Hz) | V3611471-0400 | ⑨ |
| Solenoid Valve (120V, 60 Hz-UL CERTIFIED) | V3640645-0200 | ⑨ |
| Solenoid Valve (230V, 50 Hz) | V3611471-0500 | ⑨ |
| Part | Material |
| Valve house | aluminum alloy ABC-12 |
| Plunger | reinforced nylon 66 |
| Membrane | buna-N rubber |
| Rubber Disc | special rubber |
| O-ring | fluor rubber |
| Pilot Cover | aluminum alloy ABC-12 |
Package details for Pneumatic Valve for Baghouse Air Dust Collector:
| Optipow plunger pulse solenoid air valve 135 Quantity | Carton Packing Size with Foam box |
| 1pc | 185mm*195mm*297mm |
| 2pc | 380mm*195mm*297mm |
| 4pc | 380mm*380mm*297mm |
| 6pc | 580mm*380mm*297mm |
Our after-sales services Advantages:
Thank you for choosing Qingdao Star Machinery for your industrial dust collector needs. With over 20 years of experience, we provide high-quality products and exceptional service. Our professional team offers detailed product information, customization suggestions, and answers to your questions. We offer customized shipping methods and secure packaging. Contact us with any needs or concerns.
