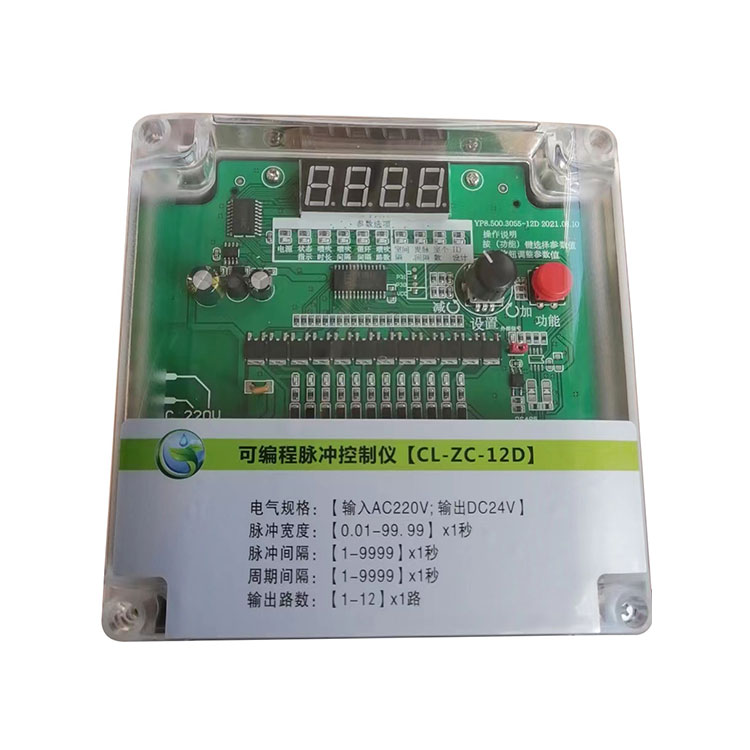

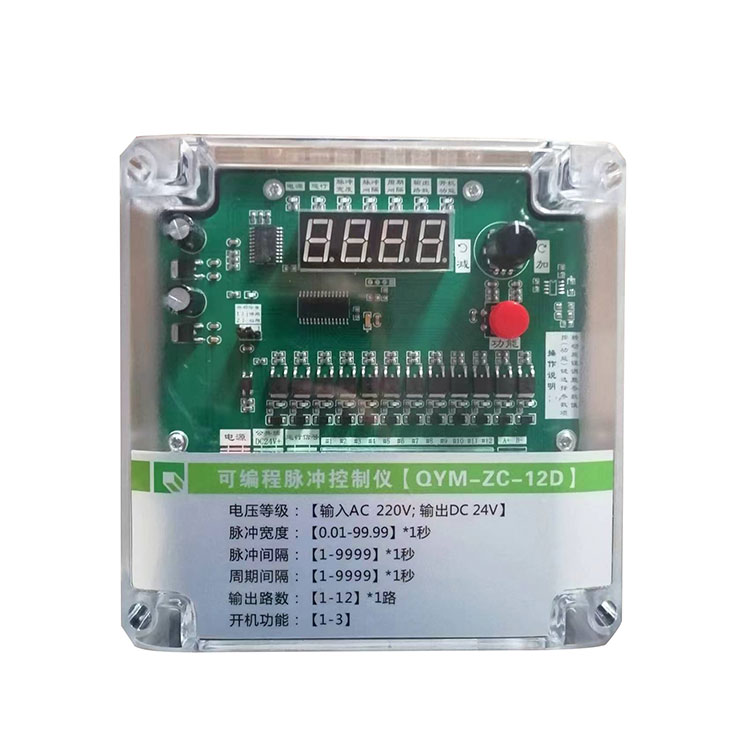

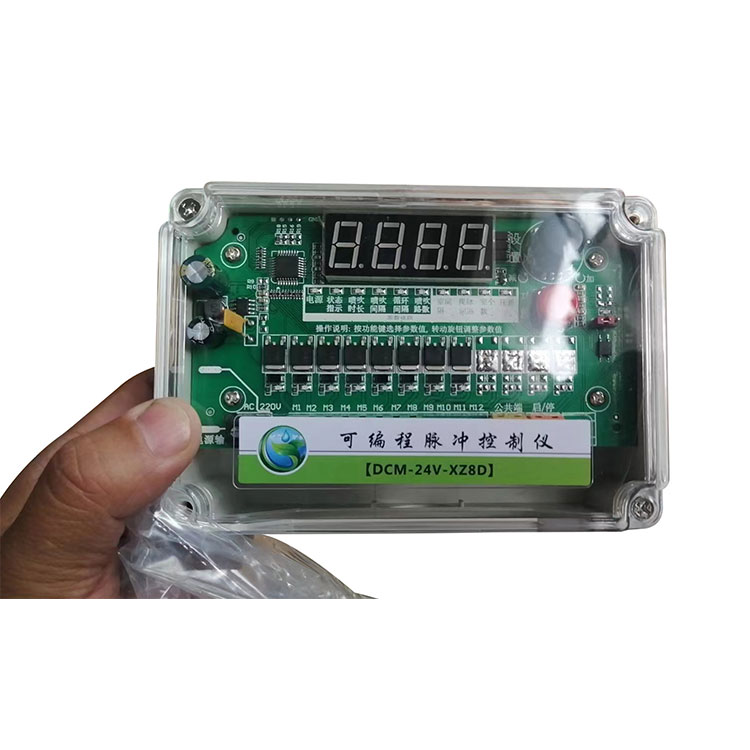

Pulse Valve Controller

The pulse valve controller, which can ensure the stable and reliable work of the bag filter in the harshest industrial environment, can completely replace the PLC control to achieve the dust removal control of the dust collector.

Send Inquiry

Product Description

The 10ways pulse valve controller can control up to 10 pulse valves (online mode), or pulse valves + poppet valves up to 10 (offline mode), and you can freely adjust the number of outputs according to the needs. We also have other types of pulse valve controller, and we support OEM.

One screw and one press can easily realise the parameter adjustment, simple and convenient.

High quality switching power supply, input voltage range from 110V to 265V, high brightness transparent shell, dustproof and waterproof, protection class IP65.

Pulse valve controller also known as Programmable Pulse Controller. Input voltage is 220V, output voltage is 220V and 24V optional.

Pulse Valve Controller

Pulse valve controller Features

- Freely adjustable number of output channels

- Easy parameter adjustment with one twist and one press

- High-quality switching power supply with ultra-wide voltage input (110V-265V)

- High brightness transparent shell, dustproof and waterproof

- Adjustable working time based on dust accumulation, prolonging the service life of the pulse valve and cloth bag

Functional advantages

1. in-line pulse valve controller type output road number adjustable. 30 seconds to set up all the parameters. there are pulse width. pulse interval. cycle interval three parameters;

2.The number of off-line pulse valve controller type poppet valves and the number of chamber pulse valves can be adjusted freely. and the parameters of increasing chamber interval and pulse interval can be set up in 60 seconds with all parameters;

3. there is a boot signal port. can be connected to the differential pressure switch. DCS system. to achieve fixed differential pressure control or remote control;

4.Switching power supply replaces the traditional transformer. adapting to the demand of low voltage; realising output short-circuit protection and automatic recovery.

Structural advantages

1. self-designed abrasive. generous appearance. product appearance

2. the circuit board (10-way) according to the bottom 48mm. 48mm from the lower part of the terminal head. wiring is very convenient

3. industrial grade waterproof: waterproof connector out of the line after its own connection test. both waterproof. wiring is also very convenient.

4.Industrial IP65: industrial grade waterproof and dustproof shell design. longer service life outdoor.

Technical parameters and indicators:

Rated input voltage	AC220V（±10%）50HZ/60HZ
Rated output voltage	DC24V/AC220V (or other custom specifications)）
Rated output current	1.2A
Power consumption	≤30W
Output pulse width adjustment range	0.01s-99.99s, precision 10ms
Output pulse interval adjustment range	1s-9999s, precision 1s
Cycle time (the time interval from one cycle of all pulse valves to the next cycle)	0-255Min
Number of control electromagnetic pulse valves	1-120
Control mode	Timing / Differential pressure
Differential pressure control input signal	Differential pressure controller and differential pressure transmitter
Environment	Operating temperature -20℃~"50℃; air relative humidity not more than 85%; No serious corrosive gases and conductive dust; no severe vibration or shock.
