Pulse Valve Pilot Cover
Products
Pulse Valve Pilot Cover

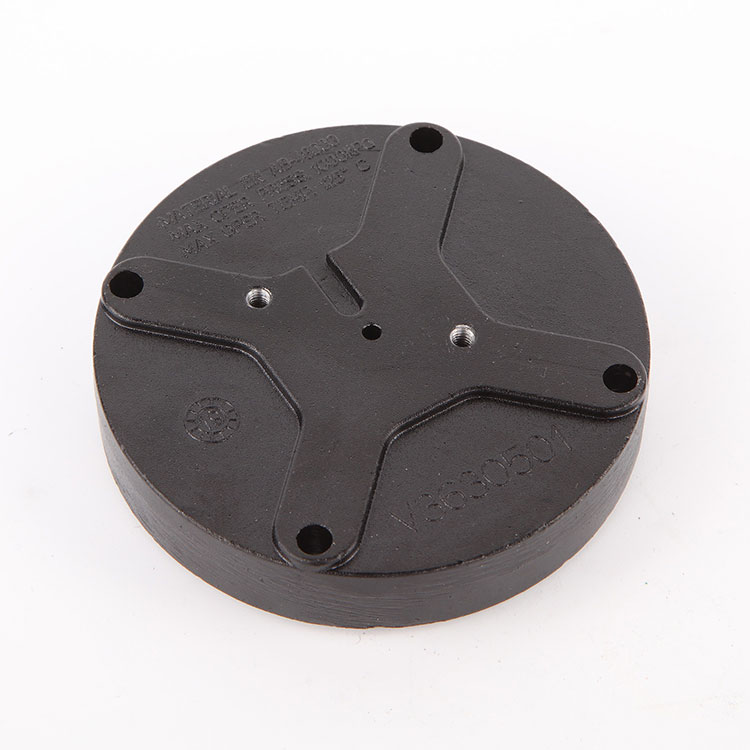

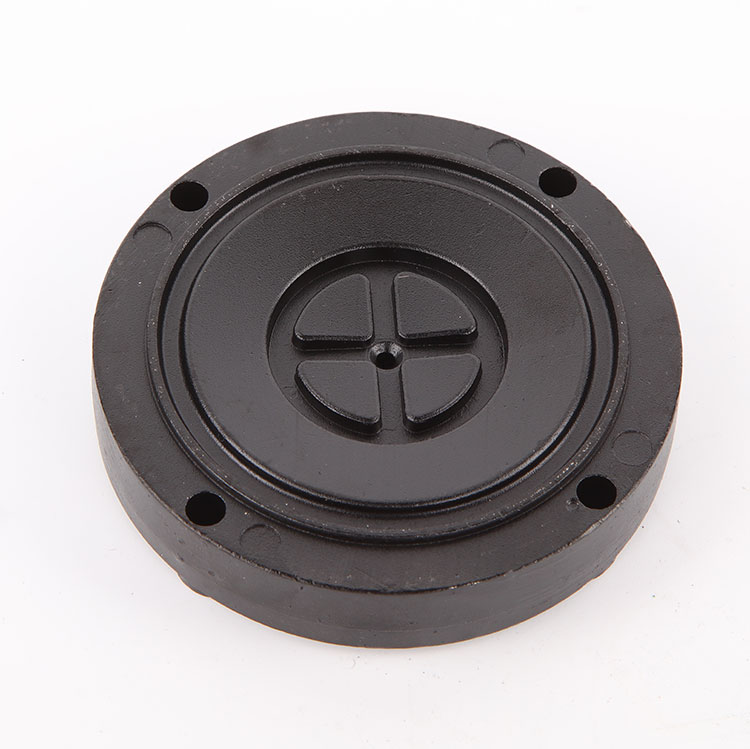

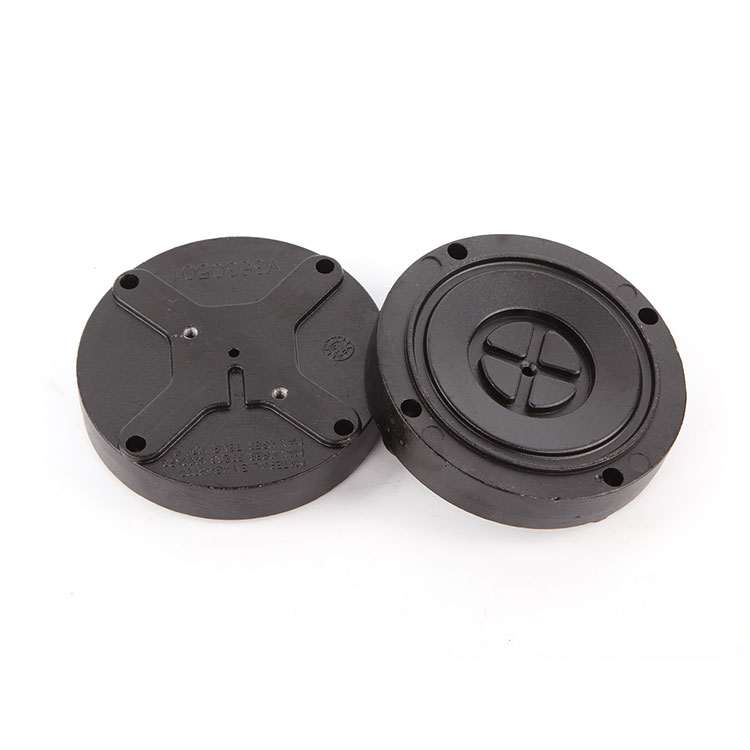

Qingdao Star Machine Pulse valve pilot cover V3630501-0100 is a high-quality aluminum alloy accessory designed specifically for the OPTIPOW series of pulse solenoid valves. It has the advantages of simple structure, beautiful appearance, light weight, low cost, durability, and durability.
Model:V3630501-0100
Send Inquiry
Product Description
Product Sellpoints
Qingdao Star Machine provides Optipow pulse valve pilot cover, it is made of high-quality zinc alloy, with excellent abrasion resistance and no rust, which is more stable and durable.
Product Parameter
| PARTS NO. | FIT | DIAMETER | THICKNESS | MAIN MATERIAL | MEDIUM | ENVIRONMENTAL TEMP | WEIGHT |
| V3630501-0100 | Optipow105/135 | 90mm | 20.40mm | Aluminum Alloy ABC-12 | Air,Pmax 7Bar | -50 ºС to + 110 ºС | 275g/pc |
| Burkert | |||||||
| Danfoss |
Product Description
Pulse valve pilot cover V3630501-0100 fits for OPTIPOW 105 V1617803 series and OPTIPOW 135 V1614718 series Piston Pulse jet Valve. It is one important parts of OPTIPOW dust removal valve, it is a bonnet in general use of Optipow solenoid valve.
Pulse valve pilot cover outer diameter Φ90.00mm, 4-Φ5.2mm bolt holes are even distribution on Φ81.5mm, fits for M5 stainless steel bolt.
High strength aluminium alloy, working life is twice more than pilot cover made by other factory. Qingdao Star Machine pulse valve pilot cover V3630501-0100 quality assurance period is 1 million pulse times or three years.
Product Application
Plunger Pulse Solenoid Valve Optipow 105
| Product name | Article number | Pos. no. |
| OPTIPOW 105(24VDC) | V1617803-0100 | ① |
| OPTIPOW 105 (110V 60Hz, 100V 50/60Hz) | V1617803-0200 | ① |
| OPTIPOW 105 (110V 50Hz) | V1617803-0300 | ① |
| OPTIPOW 105 (120V 60Hz) | V1617803-0400 | ① |
| OPTIPOW 105 (220V 50Hz) | V1617803-0500 | ① |
| OPTIPOW 105 (UR-CERTIFIED 120V 60Hz ) | V1617803-0600 | ① |
| OPTIPOW 105 (without solenoid, revolving 90° C) | V1617803-0800 | 一 |
| Coupling Set | V3592382-0000 | 一 |
| Membrane | V4549902-0100 | ② |
| O-Ring (Fluor rubber 64.5 x 3.1) | 8003-5573 | ③ |
| O-Ring (Nitril 70SH 64.5 x 3.1) | 2136-1422 | ③ |
| O-Ring (114.5 x 3.1) | 2136-1435 | ④ |
| Pilot Cover | V3630501-0100 | ⑤ |
| Plate | V3630524-0100 | ⑥ |
| Plunger | V3630527-0100 | ⑦ |
| Round Washer (SS3576-10-200HV FE/ZN45) | 4903-2173 | 一 |
| Rubber Disc | V3630530-0100 | ⑧ |
| Rubber Disc | V3640661-0100 | ⑧ |
| Solenoid Valve(24 V DC) | V3611471-0100 | ⑨ |
| Solenoid Valve (100 V, 60 Hz) | V3611471-0201 | ⑨ |
| Solenoid Valve (110 V, 50 Hz) | V3611471-0300 | ⑨ |
| Solenoid Valve (110 V, 60 Hz) | V3611471-0200 | ⑨ |
| Solenoid Valve (120 V, 60 Hz) | V3611471-0400 | ⑨ |
| Solenoid Valve (120V, 60 Hz-UL CERTIFIED) | V3640645-0200 | ⑨ |
| Solenoid Valve (230V, 50 Hz) | V3611471-0500 | ⑨ |
Plunger Pulse Solenoid Valve Optipow 135
| Product name | Article number | Pos. no. |
| OPTIPOW 135(24V) | V1614718-0100 | ① |
| OPTIPOW 135 (100V,50 Hz) | V1614718-0301 | ① |
| OPTIPOW 135 (120V, 60Hz) | V1614718-0400 | ① |
| OPTIPOW 135 (120V 60Hz UL-CERTIFIED) | V1614718-0700 | ① |
| OPTIPOW 135 (without solenoid, revolving 90° C) | V1614718-0800 | 一 |
| Membrane | V4549902-0100 | ② |
| O-Ring (Fluor rubber 64.5 x 3.1) | 8003-5573 | ③ |
| O-Ring (Nitril 70SH 64.5 x 3.1) | 2136-1422 | ③ |
| O-Ring (143 x 3.1) | 2136-1441 | ④ |
| Pilot cover | V3630501-0100 | ⑤ |
| Plate | V3630524-0100 | ⑥ |
| Plunger | V3629022-0100 | ⑦ |
| Round Washer (SS3576-5-200HV FE/ZN25) | 4903-2146 | 一 |
| Rubber Disc | V3640660-0100 | ⑧ |
| Solenoid Valve(24 V DC) | V3611471-0100 | ⑨ |
| Solenoid Valve (100 V, 60 Hz) | V3611471-0201 | ⑨ |
| Solenoid Valve (110 V, 50 Hz) | V3611471-0300 | ⑨ |
| Solenoid Valve (110 V, 60 Hz) | V3611471-0200 | ⑨ |
| Solenoid Valve (120 V, 60 Hz) | V3611471-0400 | ⑨ |
| Solenoid Valve (120V, 60 Hz-UL CERTIFIED) | V3640645-0200 | ⑨ |
| Solenoid Valve (230V, 50 Hz) | V3611471-0500 | ⑨ |
Warranty and Service
Every Qingdao Star Machine pulse valve pilot cover is manufactured at our own factories and subject to strict quality controls. Pulse valve pilot cover meet the highest quality standards and are built to last. We offer 2-years or 1,000,000 pulse times warranty extension for each Qingdao Star Machine pulse valve pilot cover.
7*24hous Expert On Line, whether accessories or the entire equipment of Qingdao Star Machine pulse valve pilot cover failure due to quality issues, it will be replaced free of charge during the warranty period.
