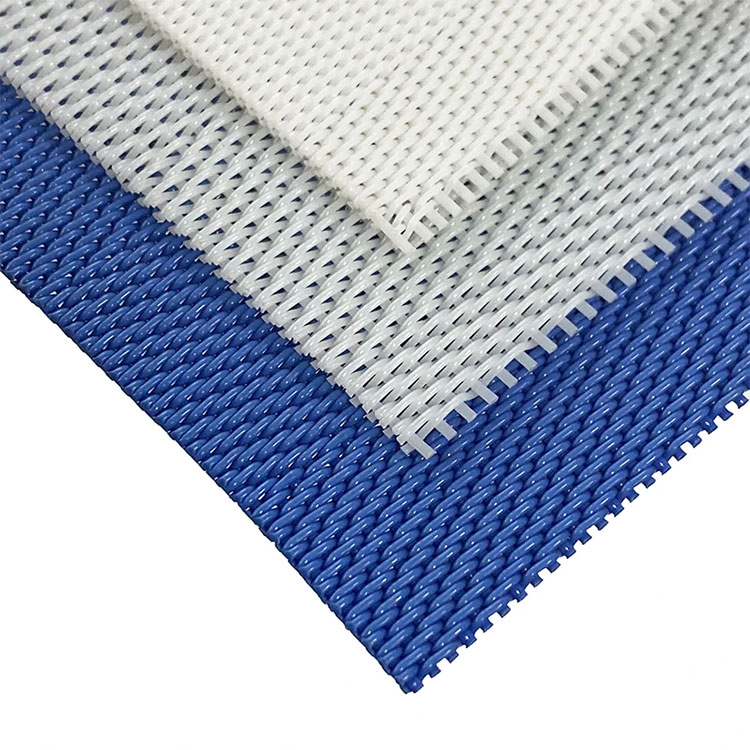

Sludge Dehydration Fabric

Qingdao Star Machine’s top quality Sludge Dehydration Fabric is also called Press- Filter Fabrics or Polyester Filter Belt ,which is mainly used for sludge dehydration, paper pulp and juice squeeze, mine smelting, mine tailings disposal and other pressure filtration industries.we can offer the sample to test the quality first for your assured procurement.

Send Inquiry

Product Description

Wholesale cheap price Sludge Dehydration Fabric by Qingdao Star Machine,Sludge Dehydration Fabric have the characteristics of good water permeability, air permeability and non-revealed sludge, acid-resisting and alkali-resisting. Because of their designing structure, the sludge can be peel off easily from the filter cake, so the screen are easily cleaned and have a long working time.

The Sludge Dehydration Fabric are typically made of durable materials and are designed to effectively aid in the dehydration process in order to reduce the volume and weight of the sludge and facilitate subsequent treatment or disposal.

Sludge Dehydration Fabric have a variety of materials, common including the following:

1. PP

2. PET

3. Nylon Fiber

Sludge Dehydration Fabric mainly matching with belt type filter press, vacuum rubber belt filter and horizontal vacuum belt filter as the filter belt.

Product Model

Sludge Dehydration Fabric

Model of Fabrics	Wire Diameter(mm)		Density(wire/cm)		Strength(N/cm)	Air Permeability (m3/m2h)
Model of Fabrics	Warp	Weft	Warp	Weft	Area of the surface	Air Permeability (m3/m2h)
SMCCB01	0.70	0.90	16	5.33	≥2200	7894±500
SMCCB02	0.50	0.90	22	5.33	≥2000	6800±500
SMCCB03	0.50	0.80	27	8.5	≥2100	5120±500
SMCCB04	0.90	0.90	17	4.8	≥4500	6741±500
SMCCB05	0.90	1.1	16	4.8	≥5000	6749±500
SMCCB06	0.90	1.10	12	3.8	≥3600	8610±500
