Dust Removal Filter Bag Skeleton

Dust removal filter bag skeleton product type

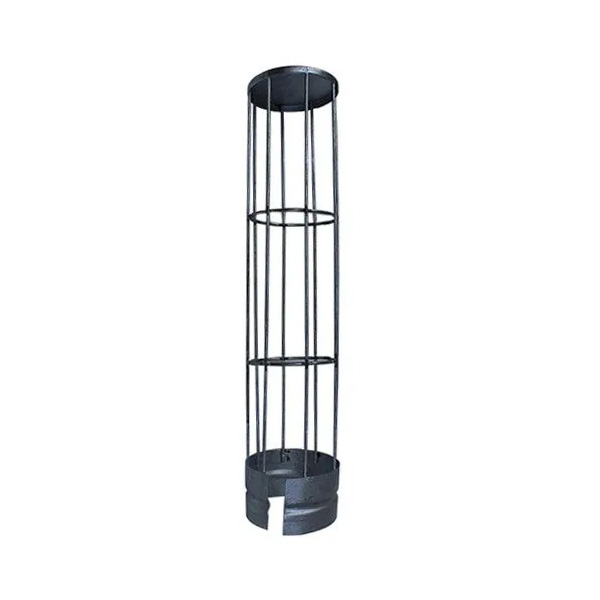

1) Round bag type (outer filter bag)

2) Round bag spring type (external filter type)

3) Flat bag type (external filter type) (oval, diamond)

4) Envelope type

5) Multi section frame (elliptical multi section frame. Round bag multi section frame (plug-in, chuck type))

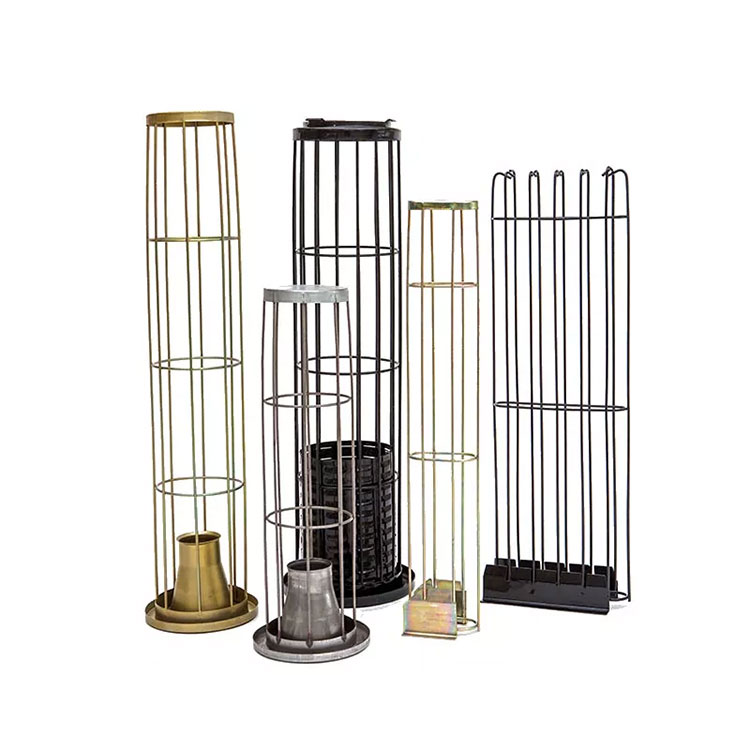

6) Finished frame (frame with Venturi tube, plastic bag, iron frame packaging, neatly arranged diamond frame)

Raw materials for dust removal filter bag skeleton

High quality low-carbon steel wire, galvanized steel wire, stainless steel wire, etc

Specification of dust removal filter bag skeleton

Circular, elliptical, flat, envelope shaped, trapezoidal, star shaped, spring shaped, and other customized dust removal frameworks of various models according to customer requirements

Dust removal filter bag skeleton structure

Reasonable structural methods such as multi section, Venturi tube, protective short tube, detachable, plug-in, chuck, etc

Introduction to the service life of the dust removal filter bag skeleton

The dust removal filter bag skeleton is smooth and flat overall structure. The dust removal filter bag skeleton has the characteristics of corrosion resistance, wear resistance, and high temperature resistance. The external part is poured with high-strength, high-temperature, acid and alkali resistant materials. The outer protective steel plate of the cylindrical equipment is made of steel, Greatly enhances the strength and service life of the equipment.

Application of dust removal filter bag skeleton products

Applied in industries such as metallurgy, building materials, power generation, chemicals, food, and waste incinerators

Manufacturing standards for dust removal filter bag framework

A. The skeleton of the cage type dust removal filter bag requires a uniform distribution of support rings and longitudinal bars, and should have sufficient strength and stiffness to withstand the gas pressure of the filter bag during filtration and dust removal, and to prevent damage and deformation caused by collisions and impacts during normal transportation and installation

B. All welding points of the filter bag skeleton should be firmly welded, and there should be no detachment, false welding, or missed welding

C. The surface of the filter bag skeleton in contact with the filter bag should be smooth and smooth, without welding scars, unevenness, or burrs

D. The spring-loaded skeleton should have sufficient number of turns and elasticity, and the spacing should be even after being pulled apart

E. The surface of the filter bag skeleton must undergo anti-corrosion treatment and be electroplated, sprayed or painted according to different needs. If used at high temperatures, its anti-corrosion exterior should clearly meet the requirements of the operating temperatur.
