Manifold Flat Mount Valves

Qingdao Star Machine provides Manifold Flat Mount Valves with 1year warranty are designed specifically for dust collector applications. Among the various types of valves used in industrial automation systems, straight-through valves are the most commonly employed. These valves are aptly named as they directly integrate into the individual lines of each application. In the context of pneumatic applications, a manifold refers to "a pipe or chamber that branches into several openings." This implies that multiple valves can be affixed to a single base or manifold, sharing a common air supply and exhaust. This streamlined configuration simplifies pipework and centralizes the valves associated with a particular process.

Straight-through valves are also known as directional control valves when based on a manifold. The MM series submerged pulse jet valves exemplify this concept, offering direct mounting on the air manifold. Manifold Flat Mount Valves are 2-way dust collector valves, they are important for pulsing substantial air volumes into filter bags, facilitating efficient particulate removal.

Manifold Flat Mount Valves have two different types, the CA Series encompasses integral pilot pulse jet valves, while the RCA series comprises remote pilot pulse jet valves. Both series feature two types: right-angle thread type and submerged type, providing diverse connections ranging from 15mm to 76mm (1/2" to 3"). Manifold Flat Mount Valves are designed to operate with air pressures from 0.3 to 8.6 bar. These valves are designed for full immersion, featuring an inlet port positioned directly within the compressed air manifold. By extracting compressed air directly from the tank, they enhance pneumatic performance and provide a substantial increase in air pulses.

Product drawing

Manifold Flat Mount Valve CA/RCA25MM

Manifold Flat Mount Valve CA/RCA40MM

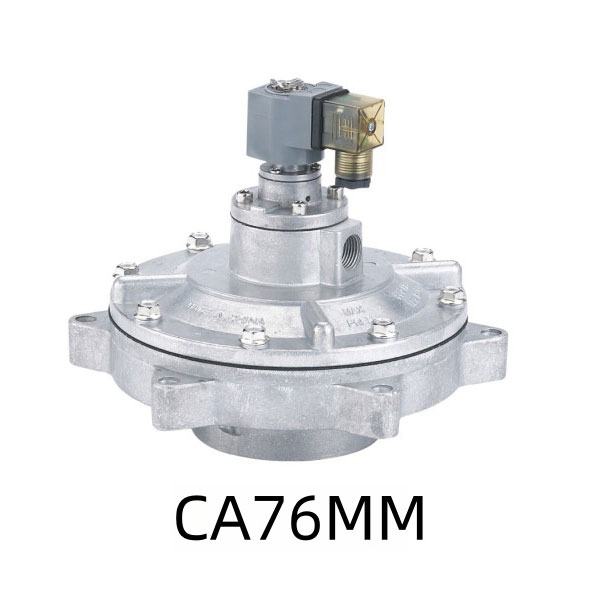

Manifold Flat Mount Valve CA/RCA76MM

Manifold Flat Mount Valve CA/RCA102MM

Order code:

The temperature range of the flanged valves depends on the chosen model and diaphragm:

Nitrile diaphragms: -40°C (-40°F) to 82°C (179.6°F)

Viton diaphragms: -29°C (-20.2°F) to 232°C (449.6°F)

Product Application

Manifold Flat Mount Valves are Ideal for:

Dust collector applications, especially designed for reverse pulse jet filter cleaning, encompassing bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters. Manifold Flat Mount Valve can improve the cleaning efficiency of baghouse dust collectors.
