MD Pulse Control Valve
In the field of industrial automation, the MD Pulse Control Valve is a key component to ensure seamless operation of dust collection, powder coating and various other industrial processes. This innovative product combines precise control with a rugged design to solve key problems for customers in different industrial fields.
Send Inquiry
Product Description

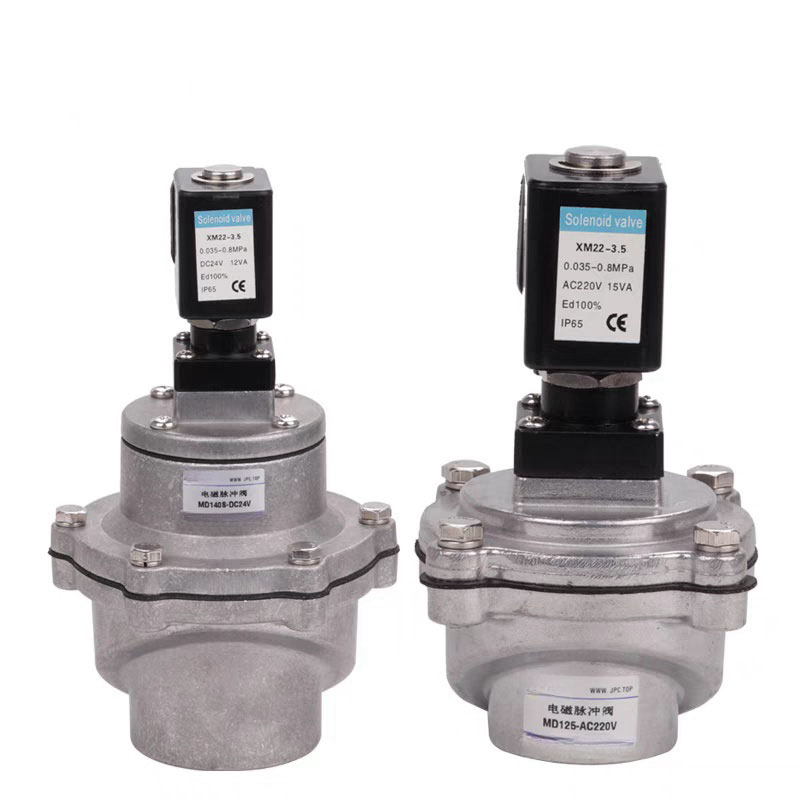

Overview of MD Pulse Control Valve
The MD Pulse Control Valve acts as a "switch" for compressed air in the spray cleaning system of pulse bag dust collectors. It connects the air reservoir to the spray pipe of the dust collector and operates under the control signal of the pulse controller to efficiently clean the filter bags. The valve is designed to provide fast response time and reliable performance, which is essential to maintain high operating efficiency in industrial environments.

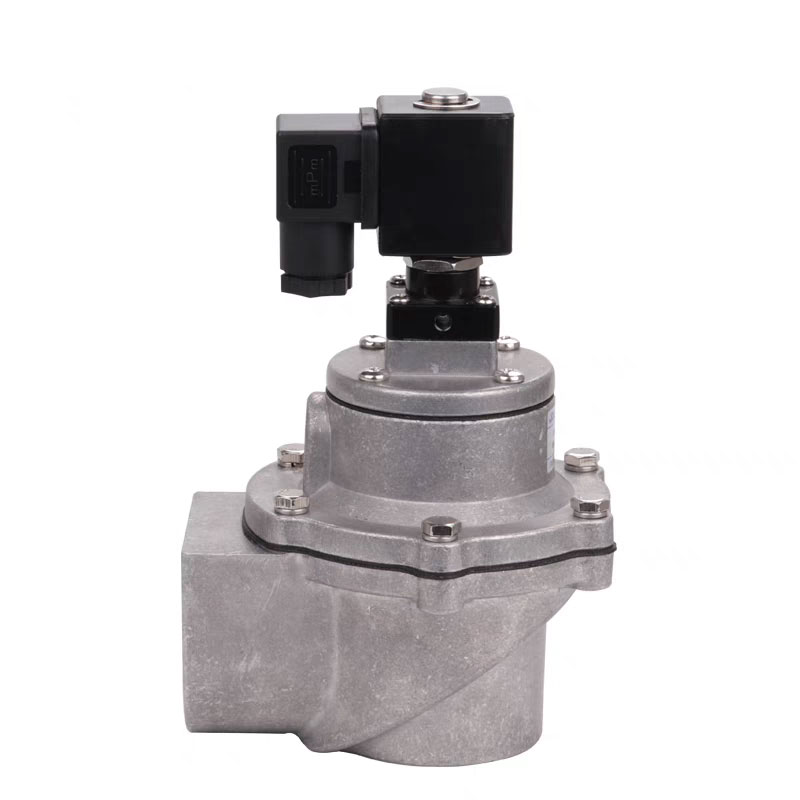

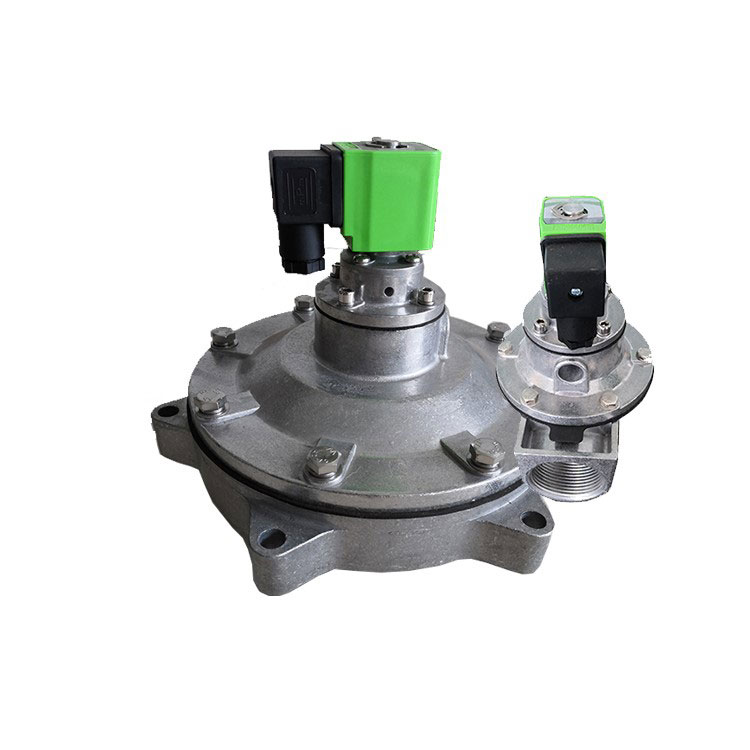

Right-angle type valve, the angle between its inlet and outlet is 90°, suitable for the installation link between the air bag and the blowing pipe, the air flow is smooth, and it can provide the soot-cleaning air pulse that meets the requirements.

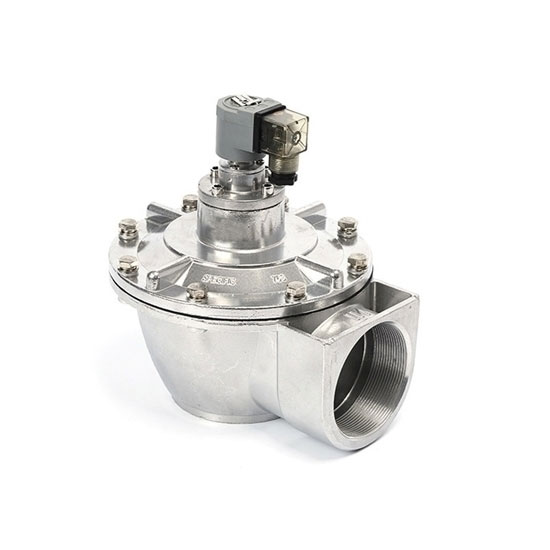

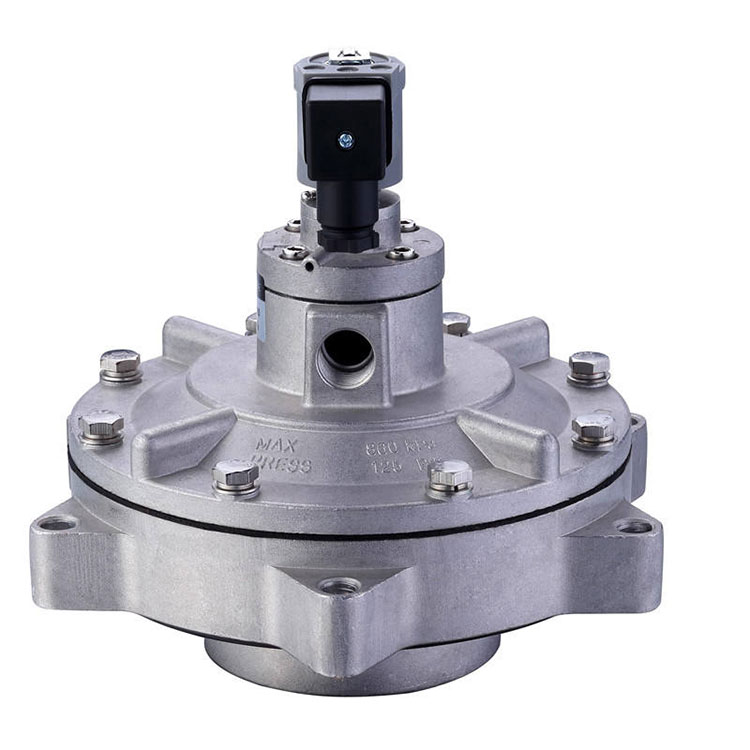

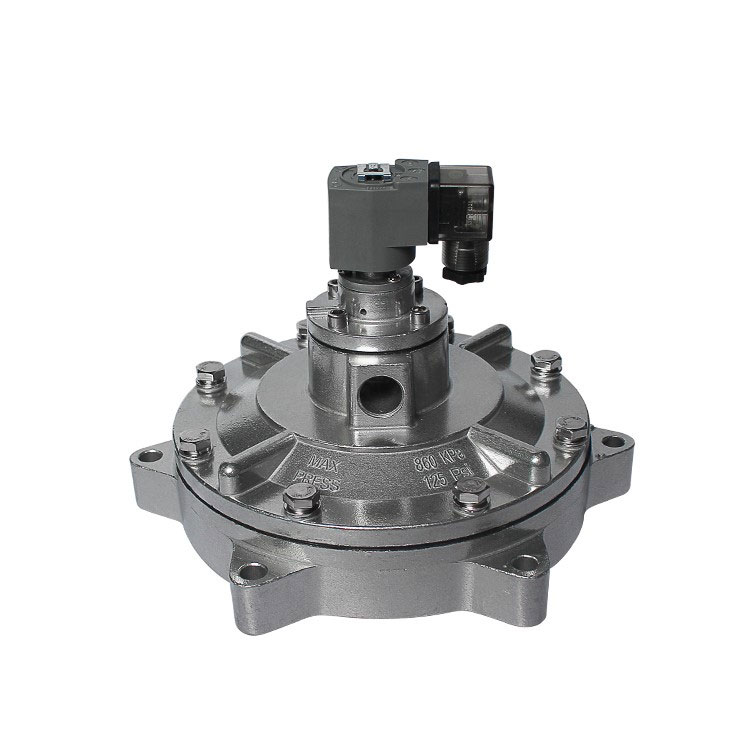

Submerged valve (also known as embedded valve), which is directly installed on the gas bag, with the circulation characteristics. Pressure loss has been reduced, suitable for the work of the lower pressure of the gas source.
Straight-through valve, the angle between its inlet and outlet is 180° (the inlet and outlet lines are the same straight line), its inlet is connected with the air storage cylinder, and its outlet is connected with the blowing pipe. The air flow is smooth, and it can provide the dust-cleaning air pulse that meets the requirements.
How the MD Pulse Control Valve Works
The MD pulse valve operates as an essential component in pulse bag filter cleaning systems. It acts as an air switch, controlling the flow of compressed air to clean dust from the filter bags. The diaphragm design separates the valve into two chambers. When compressed air enters the valve, it forces the diaphragm to seal the valve outlet, placing the valve in a "closed" state. When a signal is sent to the pulse controller, the valve quickly switches to an "open" state, allowing the compressed air to blow out dust, keeping the system clean and efficient.
The MD Pulse Control Valve has the following features:
1.The solenoid valve adopts the technology of isolation casing. fast response time. rapid direction change. wiring direction can be adjusted arbitrarily within 360 degrees. The product has various wiring forms and can be used together with pulse controller.
2.Diaphragm is made of imported special rubber stamping. high pressure resistance. long life.
3.The valve body. valve cover using die-casting technology. surface electrophoresis treatment. good anti-corrosion performance. beautiful appearance. compact structure. easy to install.
4.The internal flow path of the valve body is optimally designed. with large exhaust volume and rapid exhaust. The filter can be cleaned to blow away the objects or workpieces.
5.Diaphragm assembly adopts special sealing structure to ensure no leakage.
MD Pulse Valve Model Description
| ⑴Interface form | 1-right-angle | 2-right-angle with nut | 3-embedded | 4-right-through | |
| ⑵DN | 20mm 25mm 40mm 50mm 62mm 76mm | ||||
| ⑶ Structure form | No mark - single diaphragm | S - double diaphragm (40mm or more) | |||
| ⑷Voltage： | No mark - DC24V | special voltage custom-made | |||
| ⑸Wiring | No mark - DIN | Other forms customised | |||
MD Pulse Valve Technical Parameters:
| Technical parameters and specifications | MD120 | MD125 | MD140S | MD150S | MD162S | MD376S |
| Working medium | Filtered compressed air | |||||
| Voltage | DC24V AC110V AC220V | |||||
| Interface thread | G3/4 | G1 | G1 1/2 | G2 | G2 1/2 | G3 |
| Working pressure range (MPa) | 0.035～0.8 | |||||
| Commutation time(s) | ≤30ms | |||||
| Protection class | IP65 | |||||
| Insulation class | F | |||||
| Ambient temperature (℃) | -20～60 | |||||
| Durability | 1 million times or one year | |||||
Purchase Your MD Pulse Valve Today
Looking for a fast and efficient solution for your pulse cleaning system? The MD Pulse Valve delivers quick response times and durable performance in even the most demanding industrial environments. Order now and upgrade your filtration system with a pulse valve designed for optimal dust cleaning.
Main Selling Points
Fast Response and Durability:
MD Pulse Control Valve adopts unique magnetic isolation sleeve technology to ensure fast response time and fast direction change. It has multiple wiring options and can be seamlessly integrated with pulse controllers.
The diaphragm of the valve is made of imported special formula rubber, which can withstand high pressure and ensure long service life.
Optimized Design for Efficiency:
The valve body and bonnet are made of die-casting technology, and the surface is electrophoretic treated to enhance corrosion resistance and has a stylish and compact appearance.
The internal flow channel is carefully designed to maximize the exhaust volume and speed, which is ideal for applications that require thorough cleaning.
Leak-free Seal:
The diaphragm assembly has a special sealing structure to ensure that there is no leakage during operation.
Versatile Configuration:
MD Pulse Control Valve has a variety of interface forms, nominal diameters, structural configurations, operating voltages and wiring methods, which can be customized according to specific industrial requirements.
