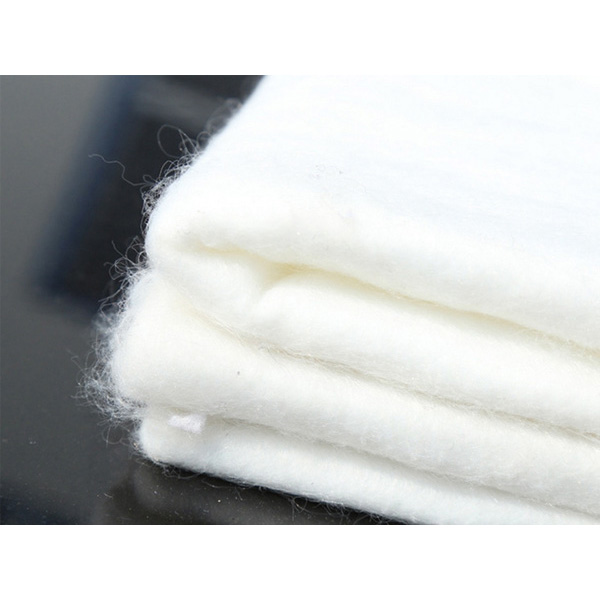

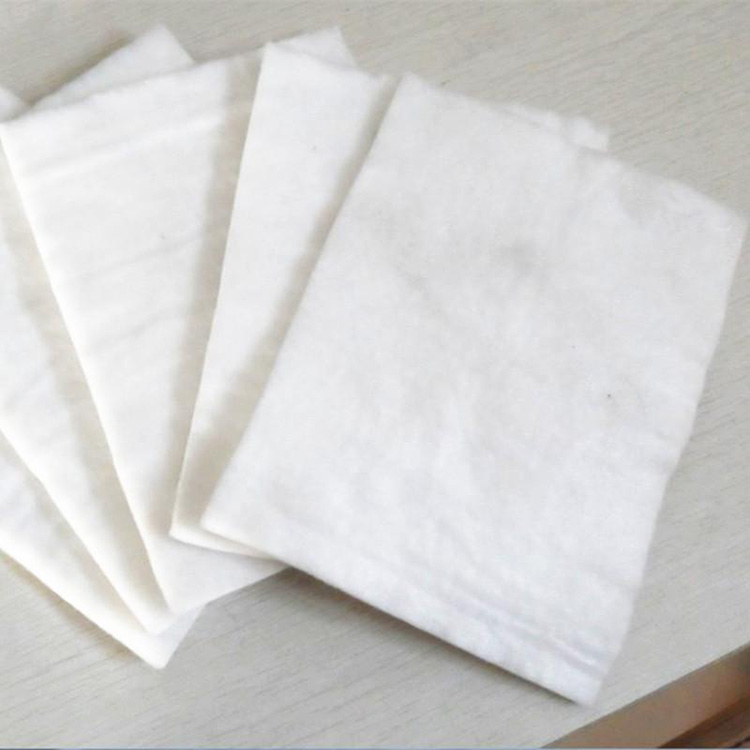

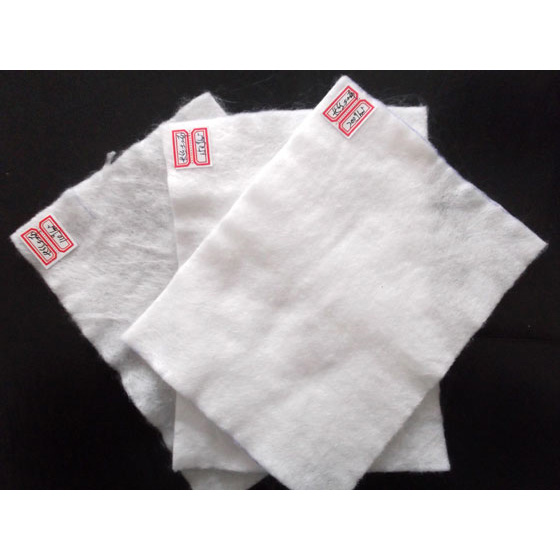

Non-Woven Geotextile Fabric

NON-WOVEN GEOTEXTILE FABRIC is a polyester filament needle-punched non-woven geotextile that does not contain chemical additives and is not heat treated. It is an environmentally friendly building material.

It can replace traditional engineering materials and construction methods, make construction safer, contribute to environmental protection, and solve basic problems in engineering construction more economically, effectively and permanently.

NON-WOVEN GEOTEXTILE FABRIC has good mechanical properties, good water permeability, corrosion resistance, and anti-aging. It has the functions of isolation, filtering, drainage, protection, stabilization, reinforcement, etc. NON-WOVEN GEOTEXTILE FABRIC can adapt to uneven base layers and resist external construction forces. It has little damage, and can still maintain its original functions under long-term load.

Product Features

Strength - Under the same weight specifications, the tensile strength of NON-WOVEN GEOTEXTILE FABRIC in all directions is higher than that of other needle-punched non-woven fabrics;

Anti-UV light - NON-WOVEN GEOTEXTILE FABRIC has extremely high UV resistance;

Extremely high temperature resistance - high temperature resistance up to 230°C, the filament GEOTEXTILE structural integrity and original physical properties are still maintained under high temperatures;

Permeability and plane drainage - NON-WOVEN GEOTEXTILE FABRIC is thicker and needle-punched, with good plane drainage and vertical water permeability, and can still maintain this performance after many years;

Corrosion resistance - filament GEOTEXTILE has better corrosion resistance than other geotextiles, so it has good long-term performance. It can withstand the corrosion of common chemicals in the soil and the corrosion of gasoline, diesel, etc.;

Ductility - geotextiles have good elongation under certain stress, allowing them to adapt to uneven and irregular base surfaces;

filament GEOTEXTILE technical features:

The thicker thickness can ensure the three-dimensional void ratio of the geotextile, which is conducive to the realization of excellent hydraulic properties.

The bursting strength of NON-WOVEN GEOTEXTILE FABRIC has great advantages, and it is especially suitable for retaining walls and embankment reinforcements.

Product Application

(1) NON-WOVEN GEOTEXTILE FABRIC can be used as reinforcement in retaining wall backfill, or used to anchor retaining wall panels. Build wrapped retaining walls or abutments.

(2) filament GEOTEXTILE can be used to reinforce flexible pavements, repair cracks on the road, and prevent reflective cracks on the road.

(3) Increase the stability of gravel slopes and reinforced soil to prevent soil erosion and freezing damage to the soil at low temperatures.
