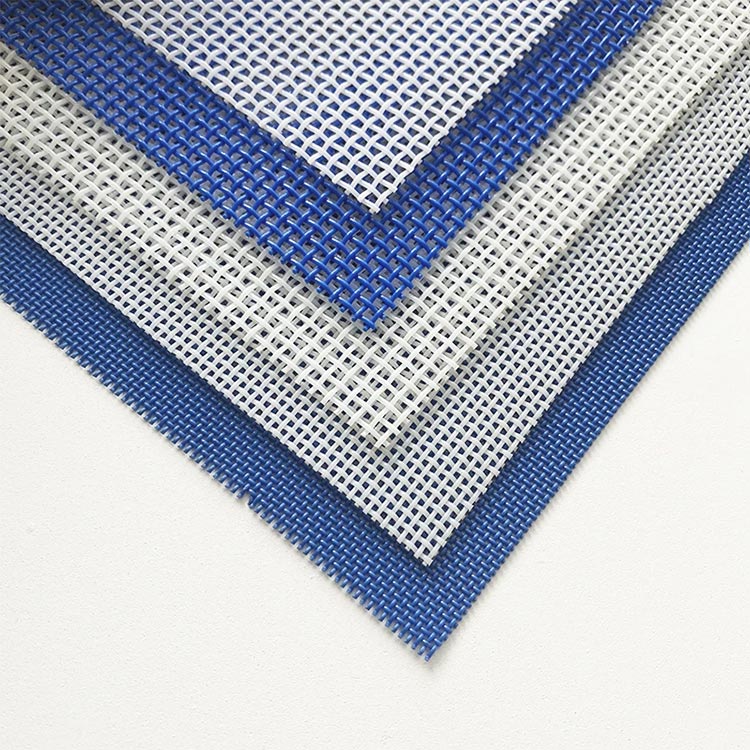

Polyester Linear Screen Cloth

Qingdao Star Machine’s durable Polyester Linear Screen Cloth is an important industrial fabric, which is made of polyester fiber by special weaving process and has a linear mesh structure. This screen cloth has a wide range of applications in many fields, such as chemical, environmental protection, pharmaceutical, food and other industries in the filtration, screening and separation process.For more assured procurement, we can provide samples to test quality.

Send Inquiry

Product Description

Wholesale cheap price Polyester Linear Screen Cloth by Qingdao Star Machine,that also could be used in high density board making, food drying, sludge dehydration equipments, concentrate and other filtration industries.

Polyester linear screen fabric features include:

1.Excellent corrosion resistance: Polyester fiber itself has good chemical stability, can resist the erosion of a variety of acids, alkalis and organic solvents, which makes Polyester Linear Screen Cloth in harsh chemical environment can also maintain stable performance.

2.High strength and wear resistance: Polyester fiber has high strength and wear resistance, making the Polyester Linear Screen Cloth not easy to break during use, extending the service life.

3.Good air permeability: The linear mesh structure makes the screen cloth have good air permeability, which helps to achieve efficient filtration and separation effects.

Polyester Linear Screen Cloth

Product Parameter

Model of Fabrics	Wire Diameter(mm)		Density(wire/cm)		Strength(N/cm)	Air Permeability (m3/m2h)
Model of Fabrics	Warp	Weft	Warp	Weft	Area of the surface	Air Permeability (m3/m2h)
SMCCA01	0.90	0.90	3.14	3.14	≥1650	20000±500
SMCCA02	0.80	0.80	5.1	5.3	≥1700	15840±500
SMCCA03	0.80	0.80	6.6	6.5	≥1650	11600±500
SMCCA04/Blue/White	0.70	0.70	6.3	6.3	≥1800	11000±500
SMCCA05/Blue/White	0.80	0.80	7.8	7	≥1800	7000±500
SMCCA06	0.50	0.50	8.85	8.46	≥1850	10100±500
SMCCA07	0.50	0.50	13.5	8.5	≥1900	6500±500
SMCCA08	0.45	0.45	10	8.6	≥1900	15570±500
SMCCA09	0.50	0.60	9.4	9	≥1950	9000±500
SMCCA10	0.80	0.80	7.48	6.69	≥1950	6400±500
SMCCA11	0.25	0.27	11.8	10.6	≥2000	5600±500
SMCCA12	0.40	0.35	16	13	≥2100	5500±500
