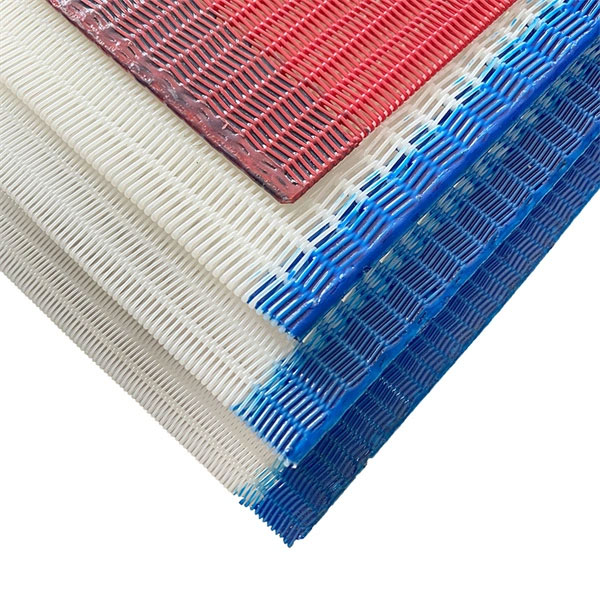

Spiral Dryer Fabrics

Wholesale low price Spiral Dryer Fabrics from Qingdao Star Machine,that is a kind of Paper Machine Clothing which used on the dryer section of Paper Machine as Paper Machine Spiral Dryer Fabrics,Spiral Dryer Fabrics is also called Spiral Link Dryer Fabrics with the short name of SLDF.We will provide customers with 24 hours of quality after-sales service.

Send Inquiry

Product Description

Qingdao Star Machine's durable Spiral Dryer Fabrics with top quality,Spiral Dryer Fabrics are suitable for drying packing paper, cultural paper, board paper and pulp board which be requested with big quantity. The fabric is widely used in paper making, mining, food, pharmaceutical, printing and dyeing, rubber industry. Also could be used as conveyor belt and the laminating machine matching belt.

Spiral Dryer Fabrics is special fabric specially used in sludge dewatering or material drying processes. The fabric combines features such as efficient dehydration, wear resistance, corrosion resistance and good air permeability, making it capable of stable operation under high loads and complex environments.

Spiral Dryer Fabrics which in special material have the characteristics of high temperature resistance, abrasion resistance and aging resistance etc.

Spiral Dryer Fabrics

Types of Spiral Dryer Fabric	Model of Fabrics	Wire Diameter(mm)		Strength(N/cm)	Air Permeability (m3/m2h)
Types of Spiral Dryer Fabric	Model of Fabrics	Warp	Weft	Area of the surface	Air Permeability (m3/m2h)
King Loop	SMCCF01	0.90	1.10	≥2300	21000±500
Large Loop	SMCCF02	0.90	1.10	≥2000	18000±500
Medium Loop	SMCCF03	0.70	0.90	≥2000	16000±500
Moderate Loop	SMCCF04	0.6	0.80	≥2000	15000±500
Small Loop	SMCCF05	0.50	0.70	≥1800	15000±500
Medium Loop(Flat Wire)	SMCCF06	0.48*0.82	0.80	≥2000	10000±500
