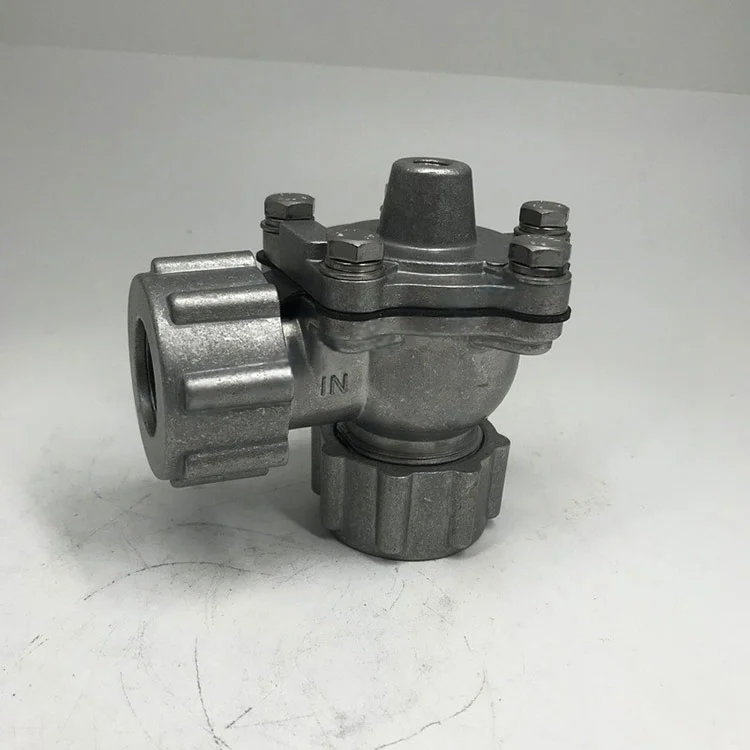

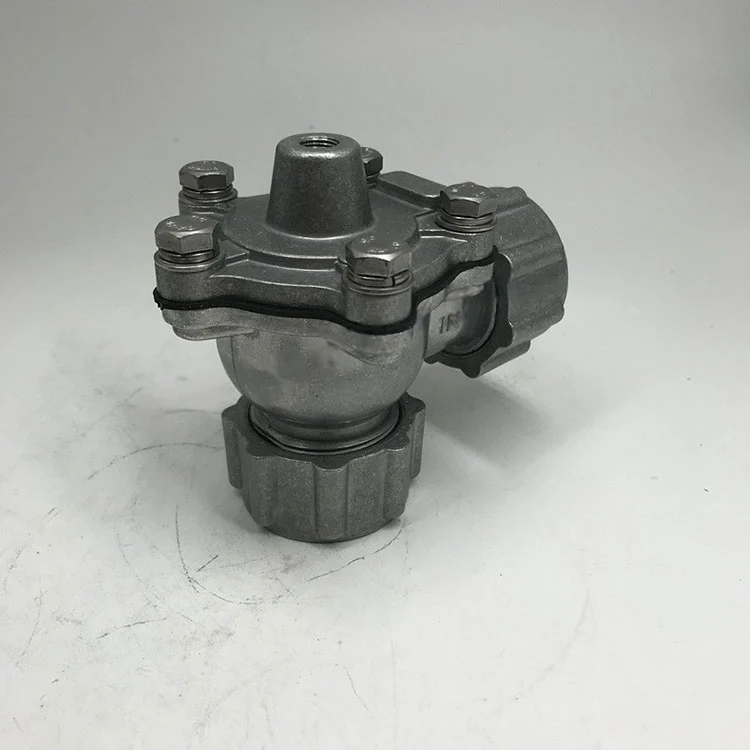

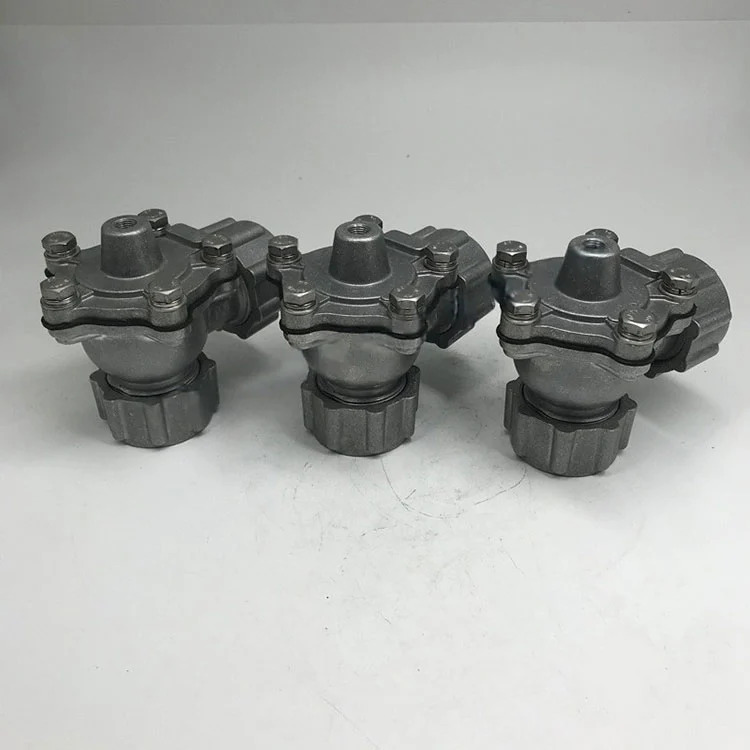

RCA20DD Dresser Nut Pulse Valve

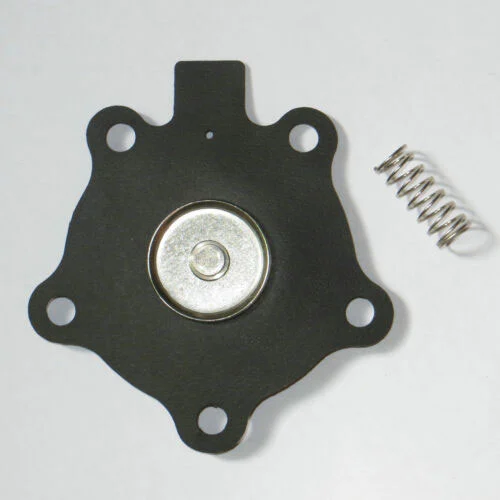

Qingdao Star Machine offers a variety of pulse jet valves designed to provide the same functionality as Goyen series valves but at a more affordable price. Our product lineup includes DD series, T series, MM series, and more. Additionally, we supply spare parts and replacement diaphragms to keep your systems running efficiently.You can rest assured to buy RCA20DD Dresser Nut Pulse Valve from our factory.
Send Inquiry
Product Description
The pulse jet valve is a key component in industrial dust filtration systems, designed to deliver efficient and precise cleaning. Its rapid opening and closing mechanism ensures effective removal of dust while conserving compressed air, optimizing the system's performance. Built with durability and reliability in mind, these valves are ideal for maintaining air quality in industries such as cement, steel, and power plants.
CA & RCA Series Pulse Jet Valves:
1. Threaded Pulse Jet Valve: CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T
2. Dresser Nut Pulse Jet Valve: CA25DD, RCA25DD, CA45DD
3. Immersion Pulse Jet Valve: CA50MM, CA62MM, CA76MM, CA89MM
4. Flanged Pulse Jet Valve: CAC25FS, CAC45FS
5. Remote Pilot Pulse Jet Valve: RCA3D2, RCA25DD, RCA45T, RCA50T

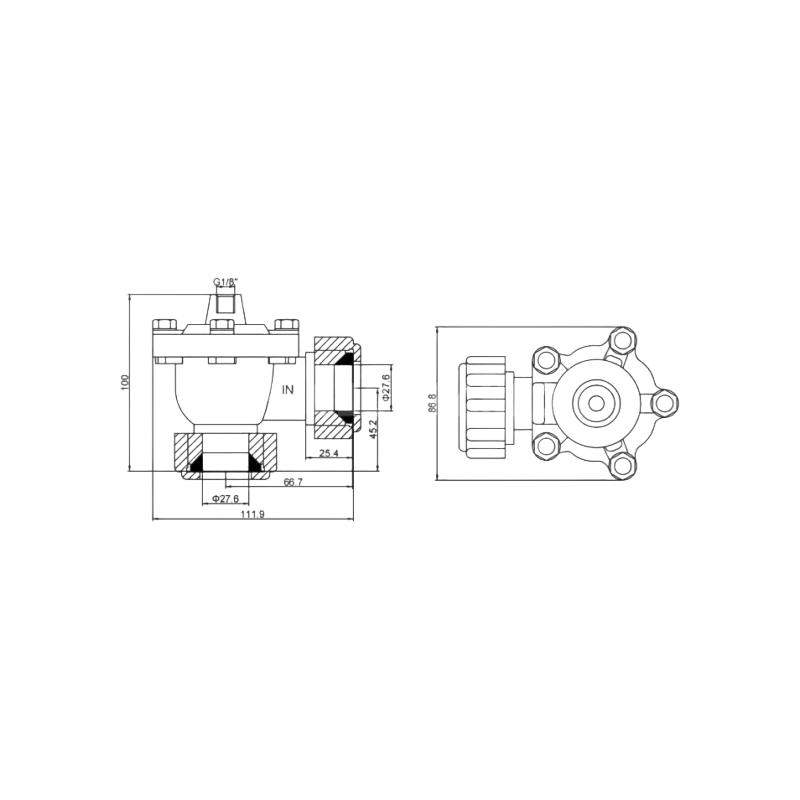

Diagram of RCA20DD
DD Series Pulse Valve Technical Parameters:
| Model | RCA20DD | RCA25DD | RCA45DD | |
| Nominal Size | 20 | 25 | 45 | |
| Port size | mm | 20 | 25 | 40 |
| in | 3/4 | 1 | 1 1/2 | |
| Number of Diaphragms | 1 | 1 | 2 | |
| Flow | Kv | 12 | 20 | 44 |
| Cv | 14 | 23 | 51 | |
| Pressure (Psi) | 5 to 125 | 5 to 125 | 5 to 125 | |
| Temperature℃ | NBR | -40 to 82 | -40 to 82 | -40 to 82 |
| FKM | -29 to 232 | -29 to 232 | -29 to 232 | |
