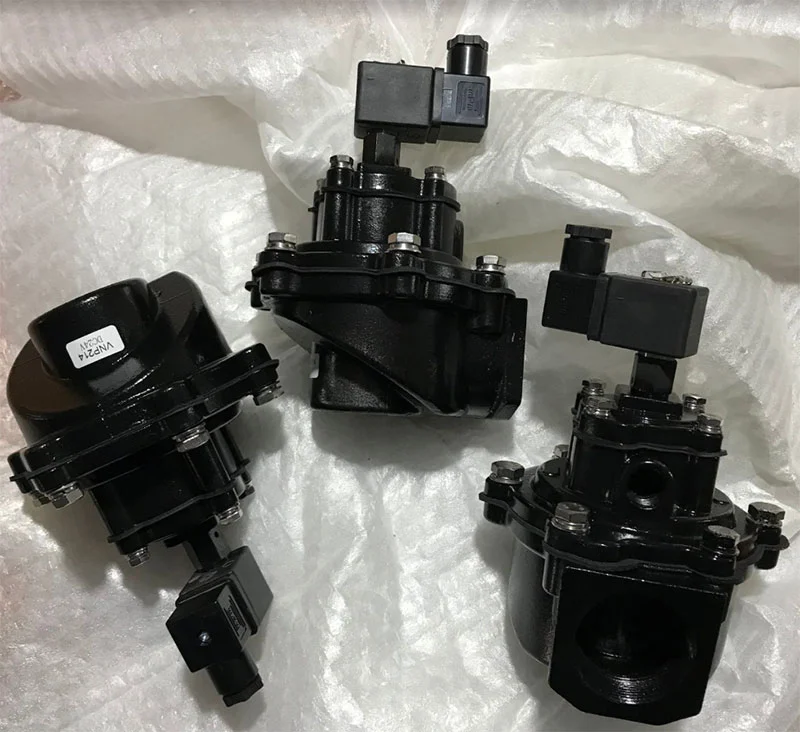

VNP214 Pulse Valve

SMCC has recently developed a new pulse valve to replace Mecair's VNP214 Pulse valve, type 1.5’ double diaphragm. We offer the valve in cardboard box and anti-vibration foam packaging to eliminate possible damage during transport, with a robust body and up to one million blasts.

Send Inquiry

Product Description

The VNP214 Pulse Valve is a reverse pulsed bag filter valve for cleaning filter bags, cartridges, envelope filters, ceramic filters and sintered metal fibre filters. The 200 series is a right angle valve with the valve inlet and outlet at a right angle of 90 degrees. The series covers 3/4' to 2 1/2' and all sizes are available all with threaded female gas connections. the special design of the VNP214 pulse valve guarantees a short opening time, a high flow rate of the valve and an easy installation of the valve. the valve body is black in colour and is made of compression moulded material. The valve body is black, made of die-cast aluminium alloy and anodised for high corrosion resistance. The bolts and screws of the valve body are made of stainless steel.

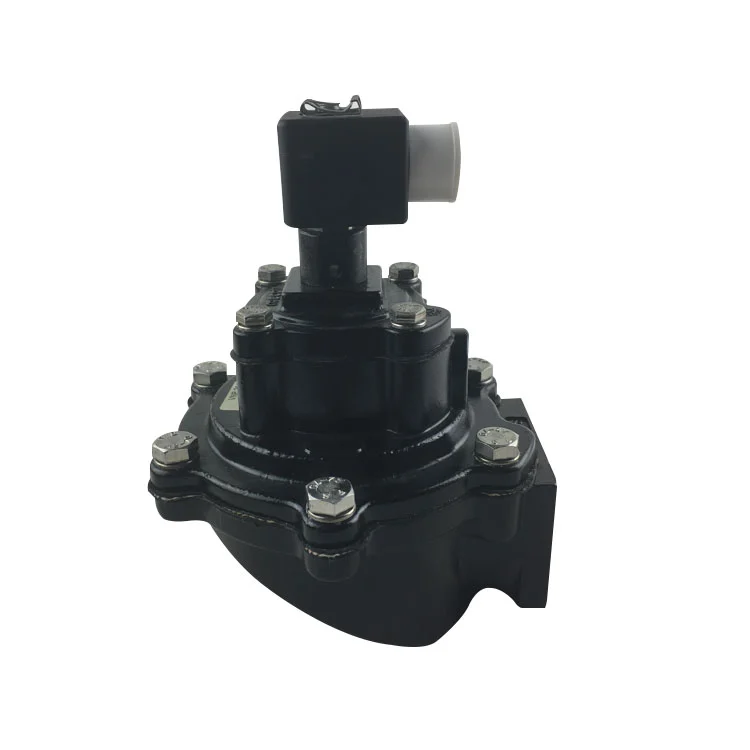

Vnp214 Pulse Valve

MODEL	PORT	NO.	PRESSURE RANGE (BAR)		COIL	KV	CV
MODEL	SIZE	DIAPH.	MIN.	MAX.	COIL	KV	CV
VNP206	¾"	1	0.5	7.5	Yes	10	11.6
VNP208	1"	1	0.5	7.5	Yes	21	24.4
VNP212	1½"	1	0.5	7.5	Yes	37	43
VNP214	1½"	2	0.5	7.5	Yes	44	51.2
VNP216	2"	2	0.5	7.5	Yes	78	90.7
VNP220	2½"	2	0.6	7.5	Yes	96	112
VEM206	¾"	1	0.5	7.5	No	10	11.6
VEM208	1"	1	0.5	7.5	No	21	24.4
VEM212	1½"	1	0.5	7.5	No	37	43
VEM214	1½"	2	0.5	7.5	No	44	51.2
VEM216	2"	2	0.5	7.5	No	78	90.7
VEM220	2½"	2	0.6	7.5	No	96	112
